Target
Target
Description
Target, literally means Point the lens and hit the TARGET. Engineered with LED technology, Target represents a harmonious combination of simple use and elegant design, a sculptural and flexible complement of versatile lighting, a solution for projects of architectural light that underline shapes, volumes and colours. Four cuts at the corners of the fitting allow the outflow of any water stagnation, while the extension to the base of optical assembly hide the articulation of rotation from the sight: devices which highlights the essential and refined design of this projector.
Designer
Target
Overview
Die-cast body and flange manufactured in aluminium alloy EN 44300 with very low copper content. Central rotation joint on three axes with locking system for safe positioning. A4 Stainless steel screws. GORE® valve to prevent condensing. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process (epoxy-based primer + polyester-based colour finish), which allows to generate a single thick protective coating which then generates aprotective barrier against atmospheric agents and UV rays. Before fixing the diffuser on the Platek products a Pre- treatment using an atmospheric pressure plasma process is carried out on the surface. The process activates the ionic load on the surface exactly where it is needed, thus promoting the best silicone grip possible and removing any residual release of agents for a longer lasting seal. The next steps are the coating of silicone and the assembly of the diffuser on the lighting fixture, with an automated process to guarantee the perfect sealing of the lamp.
- IP66
- IK08
- LED
Details

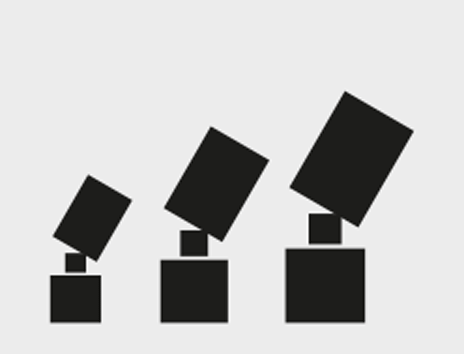

Product available in 3 heights

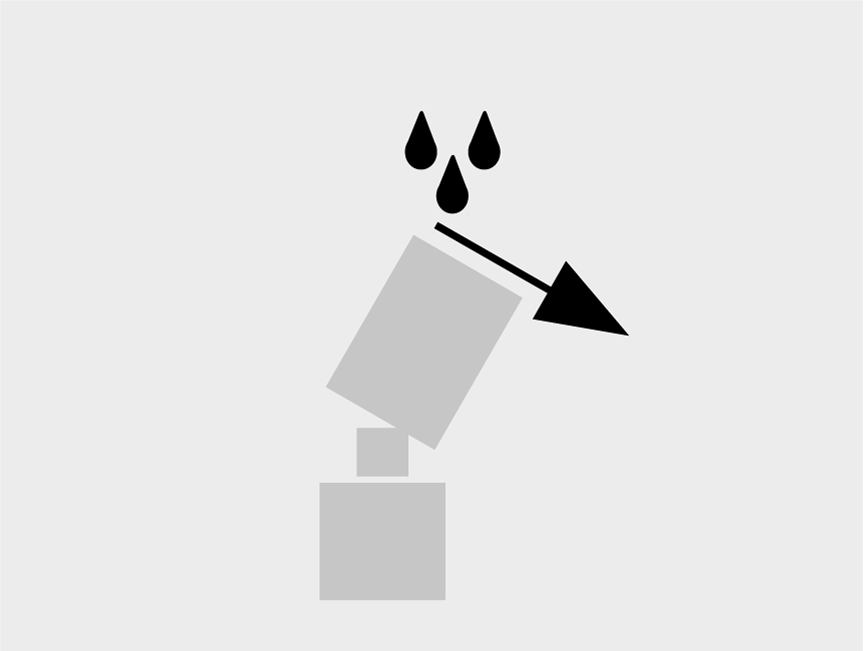

Flush difuser to minimise water and dust residue

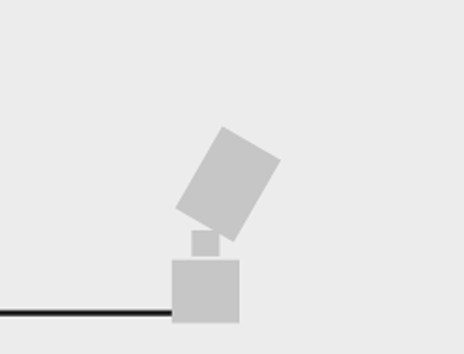

Wiring to be made inside the fixture
This product is available in RGBW LED
Product with IP66 protection rating
Product with IK08 mechanical impact rating
Product in 230V in class I
Fixture supplied with GORE valve to prevent the formation of condensation
TARGET small dimmable TRIAC
Light effect
NARROW
Simulated with Target
10,0 W 3000K
Optics: RS 9°
Code: 8820111
Wall height: 5 metres
10,0 W 3000K
Optics: RS 9°
Code: 8820111
Wall height: 5 metres
MEDIUM
Simulated with Target
10,0 W 3000K
Optics: RS 24°
Code: 8820113
Wall height: 5 metres
10,0 W 3000K
Optics: RS 24°
Code: 8820113
Wall height: 5 metres

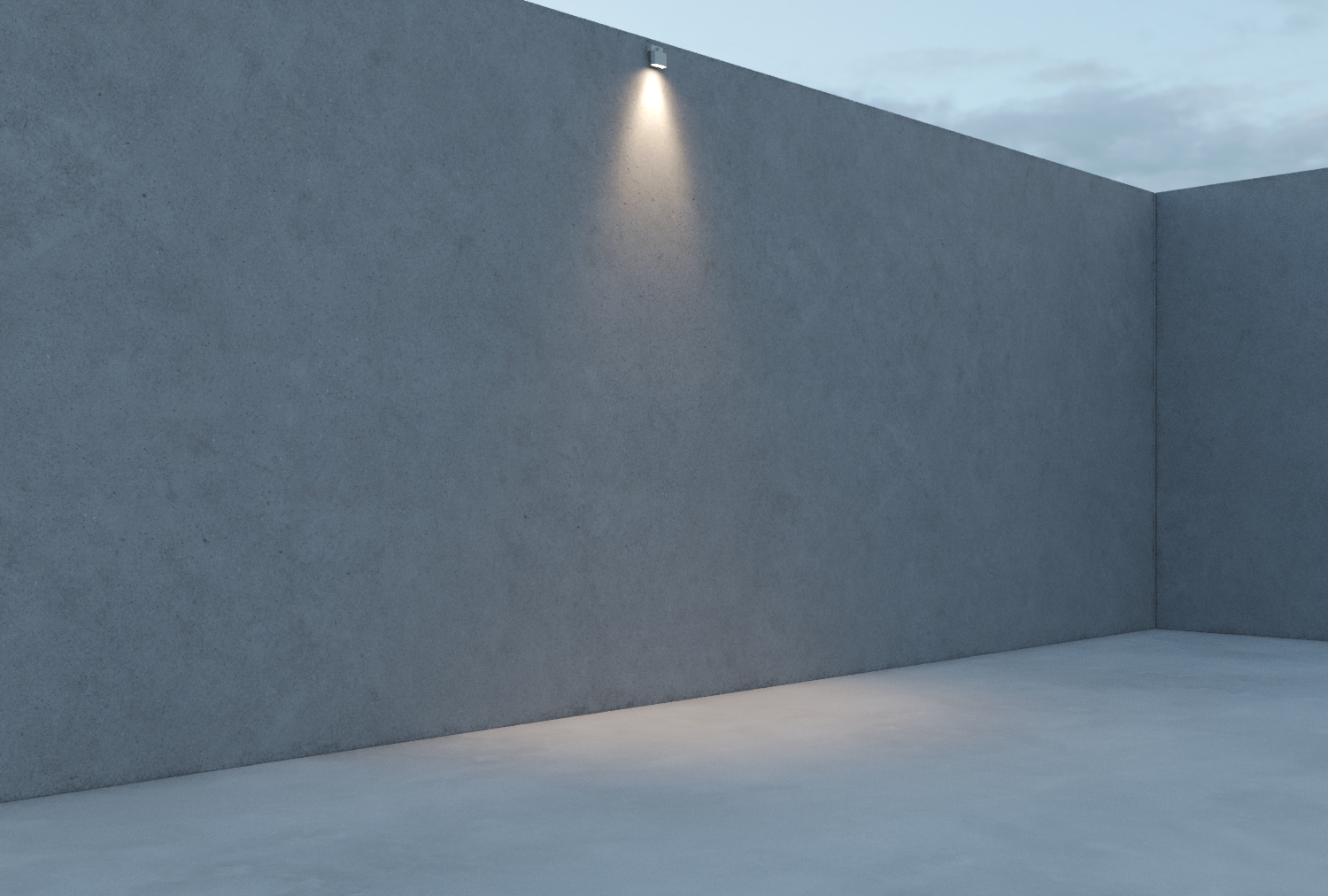

WIDE
Simulated with Target
10,0 W 3000K
Optics: RS 48°
Code: 8820118
Wall height: 5 metres
10,0 W 3000K
Optics: RS 48°
Code: 8820118
Wall height: 5 metres

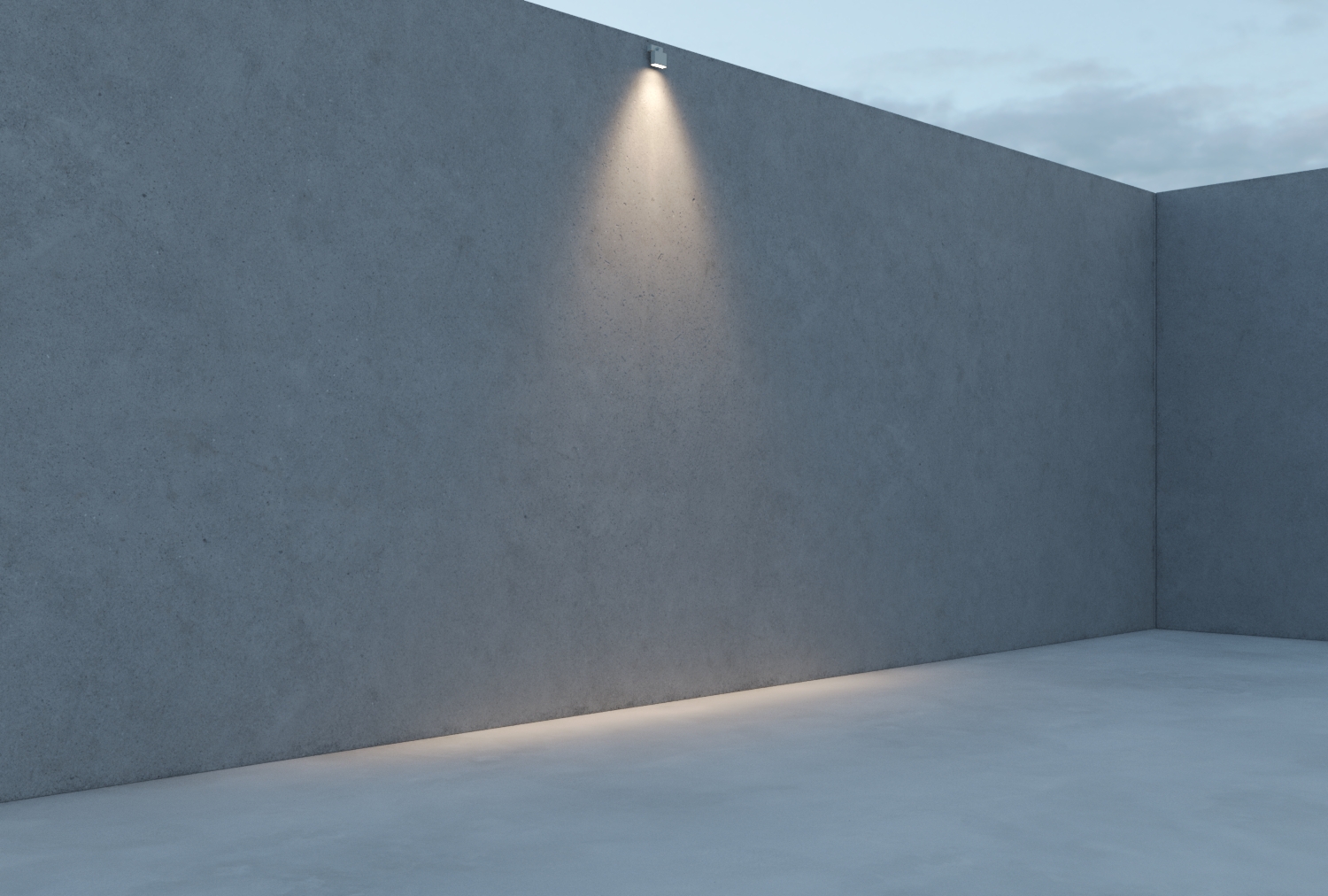

ELLIPTICAL
Simulated with Target
10,0 W 3000K
Optics: EL
Code: 8820117
Wall height: 5 metres
10,0 W 3000K
Optics: EL
Code: 8820117
Wall height: 5 metres
Select your product
Use the filters to choose the most suitable product for your needs

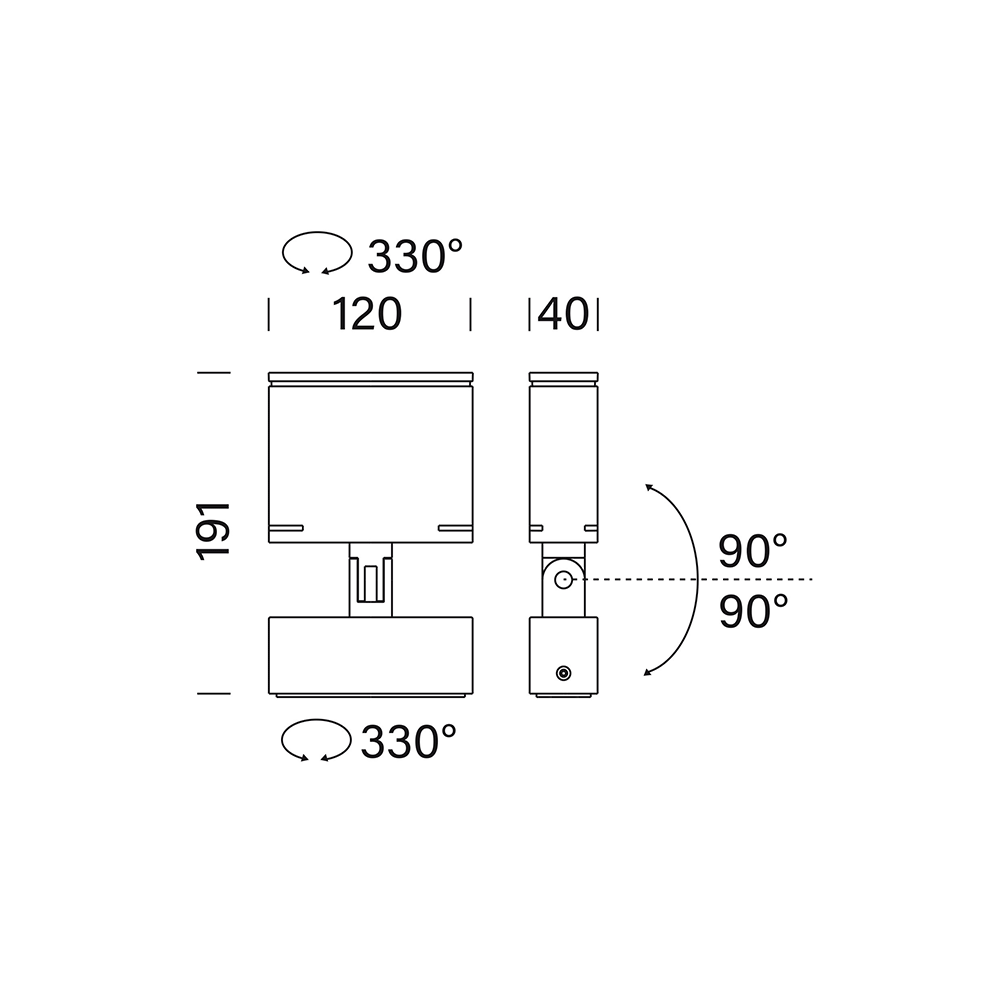

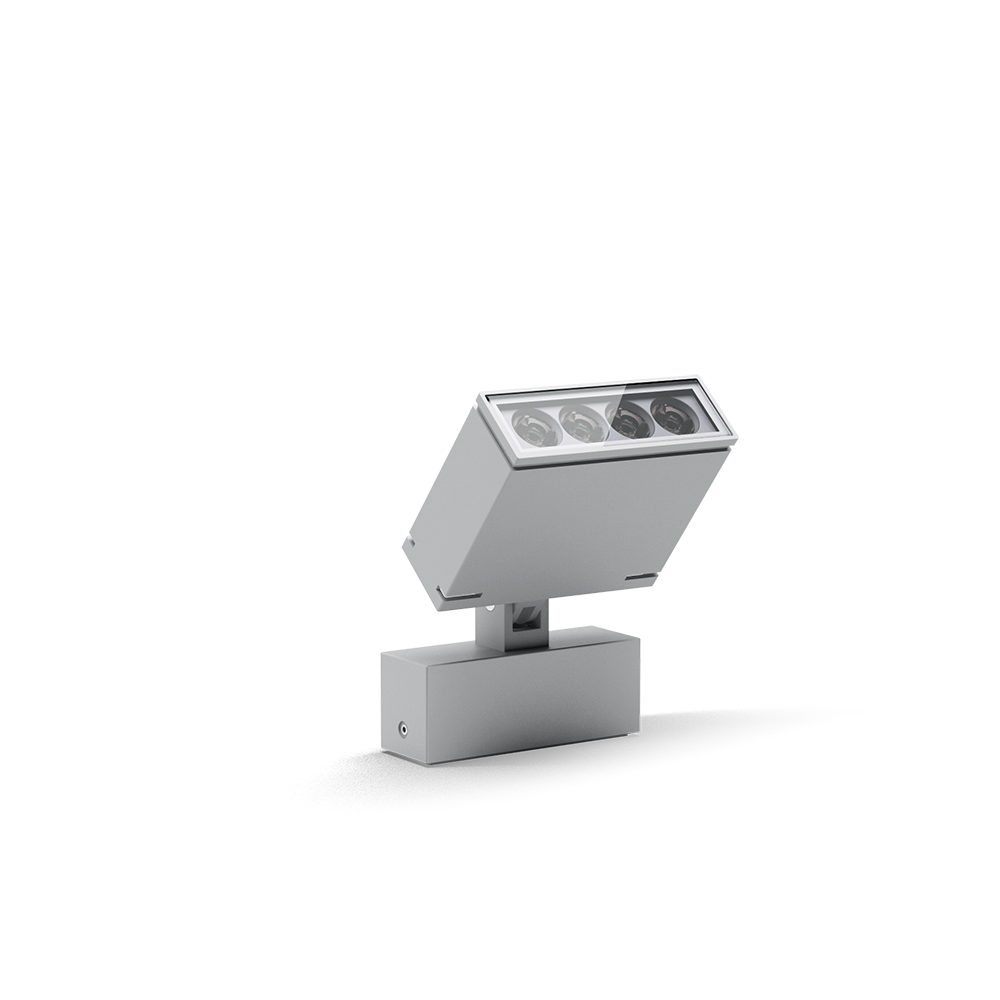

Target floodlight
Target
S
DISCOVER

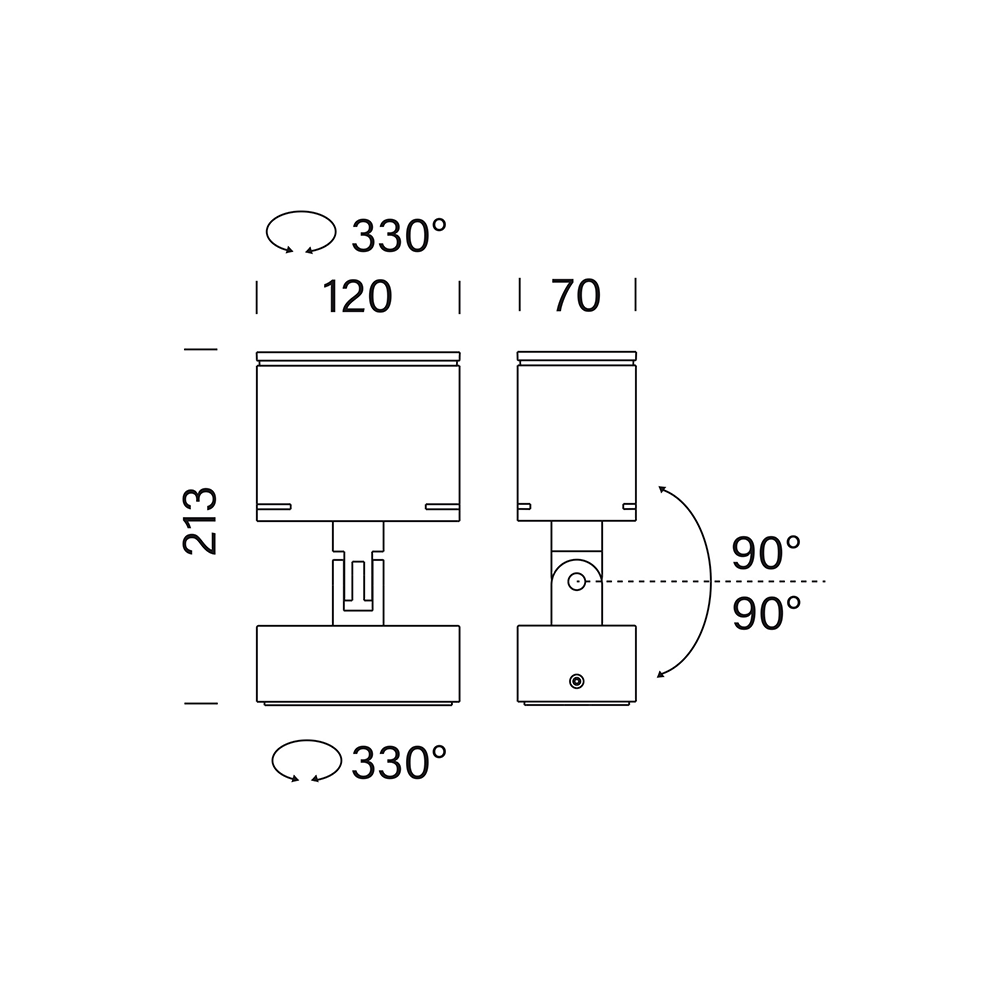

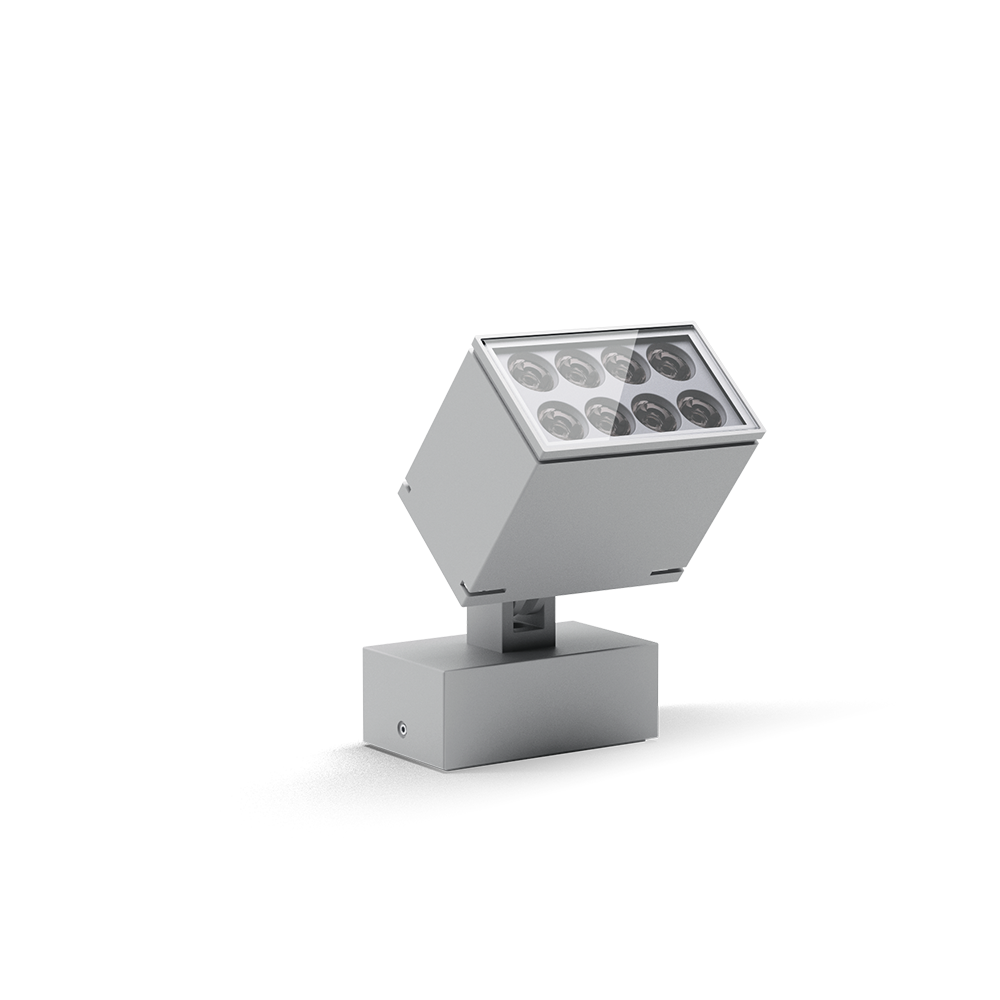

Target floodlight
Target
M
DISCOVER

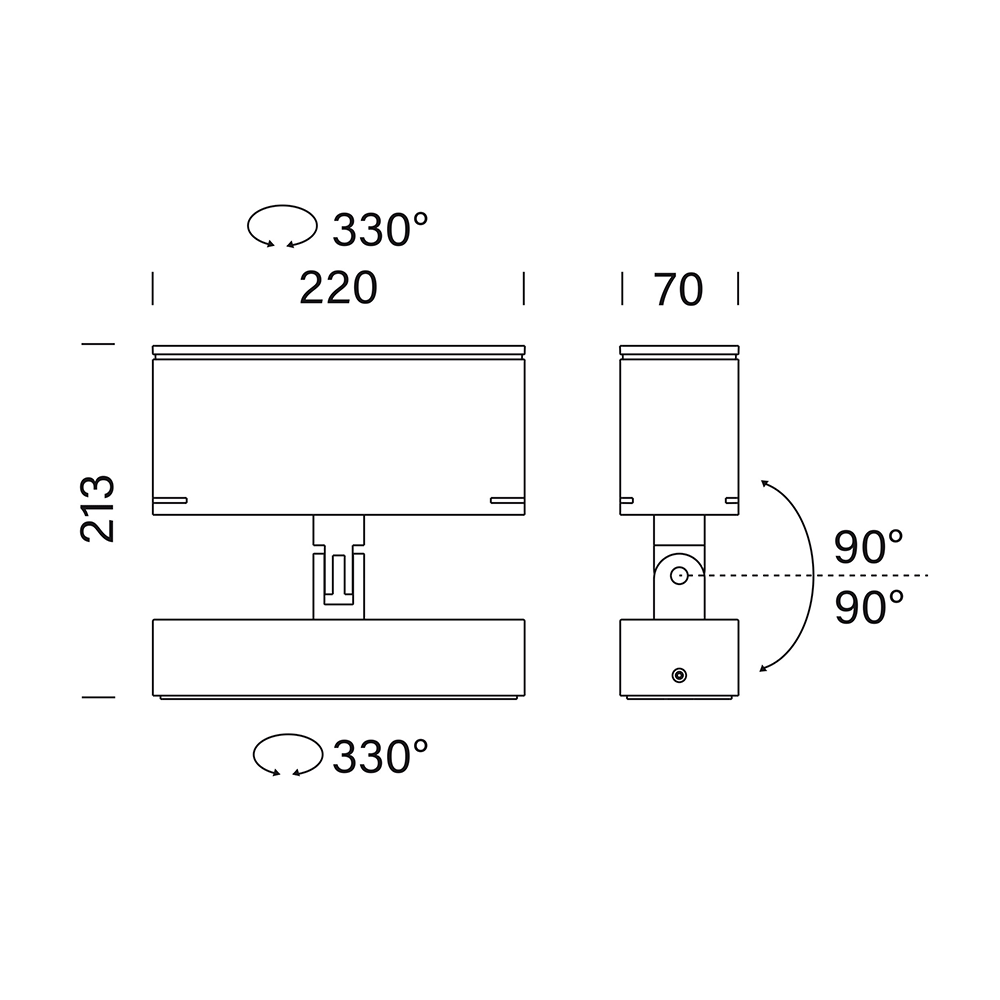

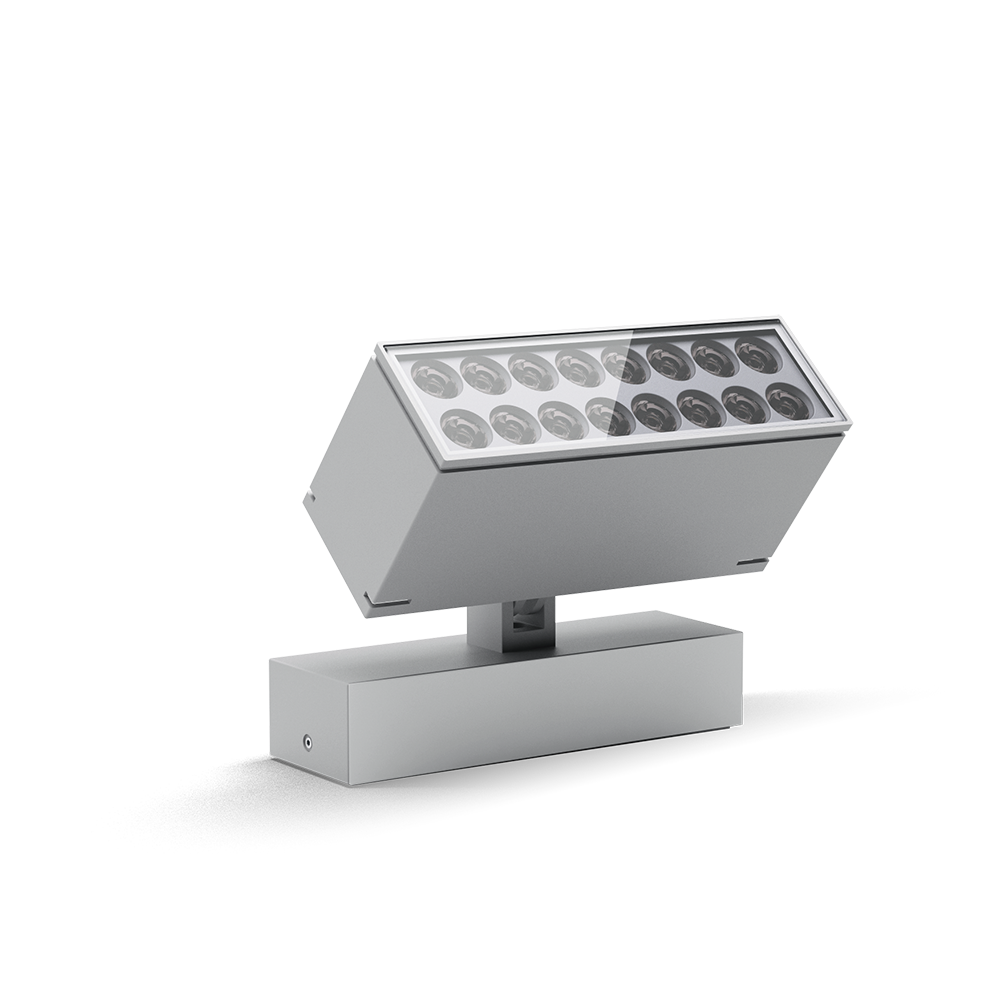

Target floodlight
Target
L
DISCOVER
Source power range
Luminous flux range
Colour temperature
CRI
Dimmable
Power Supply Unit
Beam angle
Optical accessories
Beam aperture
Use the filters to find the most suitable aperture beam for your needs, among those available.
Super spot
Spot Medium
Medium-Wide
Elliptical
| Product code | Description | LED wattage | System wattage | Optics | Dimmable | Power supply | ||
|---|---|---|---|---|---|---|---|---|
|
8820191 | Target S floodlight - 4 LED 2700K RS 9° | 8,0 W | 10,0 W | RS 9° | TRIAC | 220 ÷ 240V | |
|
|
8820111 | Target S floodlight - 4 LED 3000K RS 9° | 8,0 W | 10,0 W | RS 9° | TRIAC | 220 ÷ 240V | |
|
|
8820161 | Target S floodlight - 4 LED 4000K RS 9° | 8,0 W | 10,0 W | RS 9° | TRIAC | 220 ÷ 240V | |
|
|
8820193 | Target S floodlight - 4 LED 2700K RS 24° | 8,0 W | 10,0 W | RS 24° | TRIAC | 220 ÷ 240V | |
|
|
8820113 | Target S floodlight - 4 LED 3000K RS 24° | 8,0 W | 10,0 W | RS 24° | TRIAC | 220 ÷ 240V | |
|
|
8820163 | Target S floodlight - 4 LED 4000K RS 24° | 8,0 W | 10,0 W | RS 24° | TRIAC | 220 ÷ 240V | |
|
|
8820198 | Target S floodlight - 4 LED 2700K RS 48° | 8,0 W | 10,0 W | RS 48° | TRIAC | 220 ÷ 240V | |
|
|
8820118 | Target S floodlight - 4 LED 3000K RS 48° | 8,0 W | 10,0 W | RS 48° | TRIAC | 220 ÷ 240V | |
|
|
8820168 | Target S floodlight - 4 LED 4000K RS 48° | 8,0 W | 10,0 W | RS 48° | TRIAC | 220 ÷ 240V | |
|
|
8820197 | Target S floodlight - 4 LED 2700K EL | 8,0 W | 10,0 W | EL | TRIAC | 220 ÷ 240V | |
|
|
8820117 | Target S floodlight - 4 LED 3000K EL | 8,0 W | 10,0 W | EL | TRIAC | 220 ÷ 240V | |
|
|
8820167 | Target S floodlight - 4 LED 4000K EL | 8,0 W | 10,0 W | EL | TRIAC | 220 ÷ 240V | |
|
|
8820101 | Target S floodlight - 4 LED RGBW RS 9° | Max 8,6 W | Max 8,0 W | RS 9° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820103 | Target S floodlight - 4 LED RGBW RS 24° | Max 8,6 W | Max 8,0 W | RS 24° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820108 | Target S floodlight - 4 LED RGBW RS 48° | Max 8,6 W | Max 8,0 W | RS 48° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820107 | Target S floodlight - 4 LED RGBW EL | Max 8,6 W | Max 8,0 W | EL | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
8820291 | Target M floodlight - 8 LED 2700K RS 9° | 16,0 W | 20,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820211 | Target M floodlight - 8 LED 3000K RS 9° | 16,0 W | 20,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820261 | Target M floodlight - 8 LED 4000K RS 9° | 16,0 W | 20,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820291DALI | Target M floodlight - 8 LED 2700K RS 9° | 16,0 W | 20,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820211DALI | Target M floodlight - 8 LED 3000K RS 9° | 16,0 W | 20,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820261DALI | Target M floodlight - 8 LED 4000K RS 9° | 16,0 W | 20,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820293 | Target M floodlight - 8 LED 2700K RS 24° | 16,0 W | 20,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820213 | Target M floodlight - 8 LED 3000K RS 24° | 16,0 W | 20,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820263 | Target M floodlight - 8 LED 4000K RS 24° | 16,0 W | 20,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820293DALI | Target M floodlight - 8 LED 2700K RS 24° | 16,0 W | 20,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820213DALI | Target M floodlight - 8 LED 3000K RS 24° | 16,0 W | 20,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820263DALI | Target M floodlight - 8 LED 4000K RS 24° | 16,0 W | 20,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820298 | Target M floodlight - 8 LED 2700K RS 48° | 16,0 W | 20,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820218 | Target M floodlight - 8 LED 3000K RS 48° | 16,0 W | 20,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820268 | Target M floodlight - 8 LED 4000K RS 48° | 16,0 W | 20,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820298DALI | Target M floodlight - 8 LED 2700K RS 48° | 16,0 W | 20,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820218DALI | Target M floodlight - 8 LED 3000K RS 48° | 16,0 W | 20,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820268DALI | Target M floodlight - 8 LED 4000K RS 48° | 16,0 W | 20,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820297 | Target M floodlight - 8 LED 2700K EL | 16,0 W | 20,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820217 | Target M floodlight - 8 LED 3000K EL | 16,0 W | 20,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820267 | Target M floodlight - 8 LED 4000K EL | 16,0 W | 20,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820297DALI | Target M floodlight - 8 LED 2700K EL | 16,0 W | 20,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820217DALI | Target M floodlight - 8 LED 3000K EL | 16,0 W | 20,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820267DALI | Target M floodlight - 8 LED 4000K EL | 16,0 W | 20,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820201 | Target M floodlight - 8 LED RGBW RS 9° | Max 16,1 W | Max 16,0 W | RS 9° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820203 | Target M floodlight - 8 LED RGBW RS 24° | Max 16,1 W | Max 16,0 W | RS 24° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820208 | Target M floodlight - 8 LED RGBW RS 48° | Max 16,1 W | Max 16,0 W | RS 48° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820207 | Target M floodlight - 8 LED RGBW EL | Max 16,1 W | Max 16,0 W | EL | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
8820691 | Target L floodlight - 16 LED 2700K RS 9° | 32,0 W | 34,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820611 | Target L floodlight - 16 LED 3000K RS 9° | 32,0 W | 34,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820661 | Target L floodlight - 16 LED 4000K RS 9° | 32,0 W | 34,0 W | RS 9° | ON/OFF | 220 ÷ 240V | |
|
|
8820691DALI | Target L floodlight - 16 LED 2700K RS 9° | 32,0 W | 34,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820611DALI | Target L floodlight - 16 LED 3000K RS 9° | 32,0 W | 34,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820661DALI | Target L floodlight - 16 LED 4000K RS 9° | 32,0 W | 34,0 W | RS 9° | DALI | 220 ÷ 240V | |
|
|
8820693 | Target L floodlight - 16 LED 2700K RS 24° | 32,0 W | 34,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820613 | Target L floodlight - 16 LED 3000K RS 24° | 32,0 W | 34,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820663 | Target L floodlight - 16 LED 4000K RS 24° | 32,0 W | 34,0 W | RS 24° | ON/OFF | 220 ÷ 240V | |
|
|
8820693DALI | Target L floodlight - 16 LED 2700K RS 24° | 32,0 W | 34,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820613DALI | Target L floodlight - 16 LED 3000K RS 24° | 32,0 W | 34,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820663DALI | Target L floodlight - 16 LED 4000K RS 24° | 32,0 W | 34,0 W | RS 24° | DALI | 220 ÷ 240V | |
|
|
8820698 | Target L floodlight - 16 LED 2700K RS 48° | 32,0 W | 34,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820618 | Target L floodlight - 16 LED 3000K RS 48° | 32,0 W | 34,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820668 | Target L floodlight - 16 LED 4000K RS 48° | 32,0 W | 34,0 W | RS 48° | ON/OFF | 220 ÷ 240V | |
|
|
8820698DALI | Target L floodlight - 16 LED 2700K RS 48° | 32,0 W | 34,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820618DALI | Target L floodlight - 16 LED 3000K RS 48° | 32,0 W | 34,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820668DALI | Target L floodlight - 16 LED 4000K RS 48° | 32,0 W | 34,0 W | RS 48° | DALI | 220 ÷ 240V | |
|
|
8820697 | Target L floodlight - 16 LED 2700K EL | 32,0 W | 34,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820617 | Target L floodlight - 16 LED 3000K EL | 32,0 W | 34,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820667 | Target L floodlight - 16 LED 4000K EL | 32,0 W | 34,0 W | EL | ON/OFF | 220 ÷ 240V | |
|
|
8820697DALI | Target L floodlight - 16 LED 2700K EL | 32,0 W | 34,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820617DALI | Target L floodlight - 16 LED 3000K EL | 32,0 W | 34,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820667DALI | Target L floodlight - 16 LED 4000K EL | 32,0 W | 34,0 W | EL | DALI | 220 ÷ 240V | |
|
|
8820601 | Target L floodlight - 16 LED RGBW RS 9° | Max 30,8 W | Max 32,0 W | RS 9° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820603 | Target L floodlight - 16 LED RGBW RS 24° | Max 30,8 W | Max 32,0 W | RS 24° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820608 | Target L floodlight - 16 LED RGBW RS 48° | Max 30,8 W | Max 32,0 W | RS 48° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8820607 | Target L floodlight - 16 LED RGBW EL | Max 30,8 W | Max 32,0 W | EL | PWM | Max 700mA (4 channels + 1 channel NTC) |
