Tetra Proiettore
Overview
- IP66
- IK09
- LED
Light effect

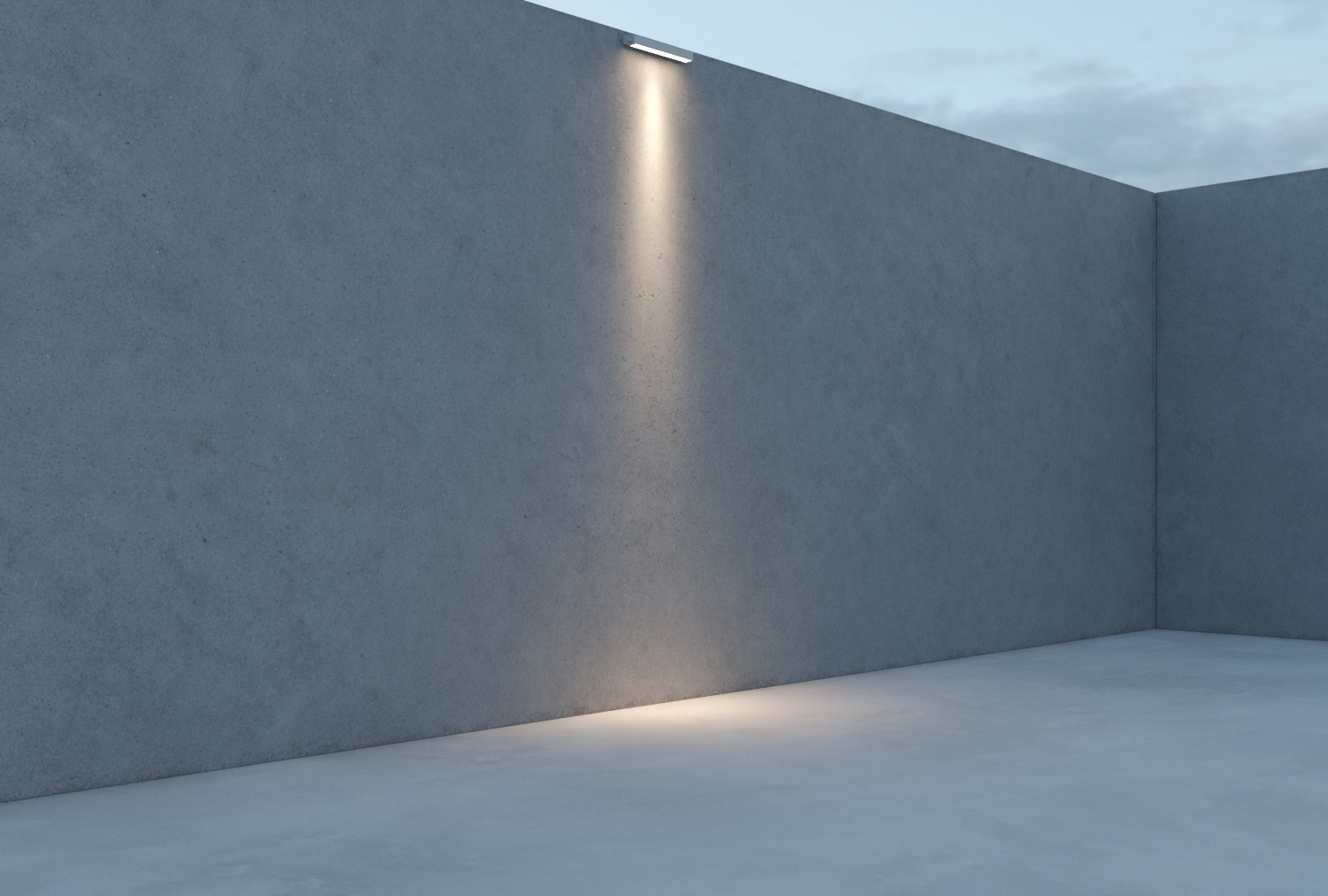

NARROW
Simulated with Tetra Proiettore
30,0 W 3000K
Optics: 12°
Code: 8482411
Wall height: 5 metres
30,0 W 3000K
Optics: 12°
Code: 8482411
Wall height: 5 metres
MEDIUM
Simulated with Tetra Proiettore
30,0 W 3000K
Optics: 28°
Code: 8482413
Wall height: 5 metres
30,0 W 3000K
Optics: 28°
Code: 8482413
Wall height: 5 metres
WIDE
Simulated with Tetra Proiettore
30,0 W 3000K
Optics: 45°
Code: 8482418
Wall height: 5 metres
30,0 W 3000K
Optics: 45°
Code: 8482418
Wall height: 5 metres
ELLIPTICAL
Simulated with Tetra Proiettore
30,0 W 3000K
Optics: Elliptical
Code: 8482417
Wall height: 5 metres
30,0 W 3000K
Optics: Elliptical
Code: 8482417
Wall height: 5 metres
NARROW
Simulated with Tetra Proiettore
45,0 W 3000K
Optics: 12°
Code: 8482611
Wall height: 5 metres
45,0 W 3000K
Optics: 12°
Code: 8482611
Wall height: 5 metres
MEDIUM
Simulated with Tetra Proiettore
45,0 W 3000K
Optics: 28°
Code: 8482613
Wall height: 5 metres
45,0 W 3000K
Optics: 28°
Code: 8482613
Wall height: 5 metres
WIDE
Simulated with Tetra Proiettore
45,0 W 3000K
Optics: 45°
Code: 8482618
Wall height: 5 metres
45,0 W 3000K
Optics: 45°
Code: 8482618
Wall height: 5 metres
ELLIPTICAL
Simulated with Tetra Proiettore
45,0 W 3000K
Optics: Elliptical
Code: 8482617
Wall height: 5 metres
45,0 W 3000K
Optics: Elliptical
Code: 8482617
Wall height: 5 metres
Select your product
Use the filters to choose the most suitable product for your needs
Tetra Proiettore floodlight
Tetra
60
DISCOVER
Tetra Proiettore floodlight
Tetra
90
DISCOVER
Source power range
Luminous flux range
Colour temperature
Beam angle
Optical accessories
Beam aperture
Use the filters to find the most suitable aperture beam for your needs, among those available.
Spot
Medium
Medium-Wide
| Product code | Description | LED wattage | System wattage | Optics | Dimmable | Power supply | ||
|---|---|---|---|---|---|---|---|---|
|
8482411 | Tetra Proiettore 60 floodlight - 24 LED 3000K 12° | 27,8 W | 30,0 W | 12° | DALI | 220 ÷ 240V | |
|
|
8482461 | Tetra Proiettore 60 floodlight - 24 LED 4000K 12° | 27,8 W | 30,0 W | 12° | DALI | 220 ÷ 240V | |
|
|
8482413 | Tetra Proiettore 60 floodlight - 24 LED 3000K 28° | 27,8 W | 30,0 W | 28° | DALI | 220 ÷ 240V | |
|
|
8482463 | Tetra Proiettore 60 floodlight - 24 LED 4000K 28° | 27,8 W | 30,0 W | 28° | DALI | 220 ÷ 240V | |
|
|
8482418 | Tetra Proiettore 60 floodlight - 24 LED 3000K 45° | 27,8 W | 30,0 W | 45° | DALI | 220 ÷ 240V | |
|
|
8482468 | Tetra Proiettore 60 floodlight - 24 LED 4000K 45° | 27,8 W | 30,0 W | 45° | DALI | 220 ÷ 240V | |
|
|
8482417 | Tetra Proiettore 60 floodlight - 24 LED 3000K Elliptical | 27,8 W | 30,0 W | Elliptical | DALI | 220 ÷ 240V | |
|
|
8482467 | Tetra Proiettore 60 floodlight - 24 LED 4000K Elliptical | 27,8 W | 30,0 W | Elliptical | DALI | 220 ÷ 240V | |
|
8482611 | Tetra Proiettore 90 floodlight - 36 LED 3000K 12° | 41,8 W | 45,0 W | 12° | DALI | 220 ÷ 240V | |
|
|
8482661 | Tetra Proiettore 90 floodlight - 36 LED 4000K 12° | 41,8 W | 45,0 W | 12° | DALI | 220 ÷ 240V | |
|
|
8482613 | Tetra Proiettore 90 floodlight - 36 LED 3000K 28° | 41,8 W | 45,0 W | 28° | DALI | 220 ÷ 240V | |
|
|
8482663 | Tetra Proiettore 90 floodlight - 36 LED 4000K 28° | 41,8 W | 45,0 W | 28° | DALI | 220 ÷ 240V | |
|
|
8482618 | Tetra Proiettore 90 floodlight - 36 LED 3000K 45° | 41,8 W | 45,0 W | 45° | DALI | 220 ÷ 240V | |
|
|
8482668 | Tetra Proiettore 90 floodlight - 36 LED 4000K 45° | 41,8 W | 45,0 W | 45° | DALI | 220 ÷ 240V | |
|
|
8482667 | Tetra Proiettore 90 floodlight - 36 LED 4000K Elliptical | 41,8 W | 45,0 W | Elliptical | DALI | 220 ÷ 240V | |
|
|
8482617 | Tetra Proiettore 90 floodlight - 36 LED 3000K Elliptical | 41,8 W | 45,0 W | Elliptical | DALI | 220 ÷ 240V |
