Description
Menhir and Micro Menhir belong to two families with the same elegant and clean impression from linear but evocative drawing. A very effective graphic gesture: a cylindrical base supports the diffuser that, when switched on, reproduces the circular shape of the body on the surface where it is installed. Menhir is the version from the greater dimensions, more apt to public spaces, while Micro Menhir is perfect for private gardens and parks. It is available in three heights and with light distribution on 180° and 360°.
Designer
Gallery
Menhir
Overview
Extruded aluminium alloy body. Die-cast head and base manufactured in EN 44300 aluminium alloy with very low copper content. Glass diffuser. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process (epoxy-based primer + polyester-based colour finish), which allows to generate a single thick protective coating which then generates aprotective barrier against atmospheric agents and UV rays.
- IP65
- IK08
- COB LED
Details
Product with IP65 protection rating
Product with IK08 mechanical impact rating
Product in 230V in class I
Product available in different heights
Installation with specific flange or bolts
No visible screws
Light effect
200 - SINGLE EMISSION
200 - DOUBLE EMISSION
620 - SINGLE EMISSION
620 - DOUBLE EMISSION
1050 - SINGLE EMISSION
1050 - DOUBLE EMISSION

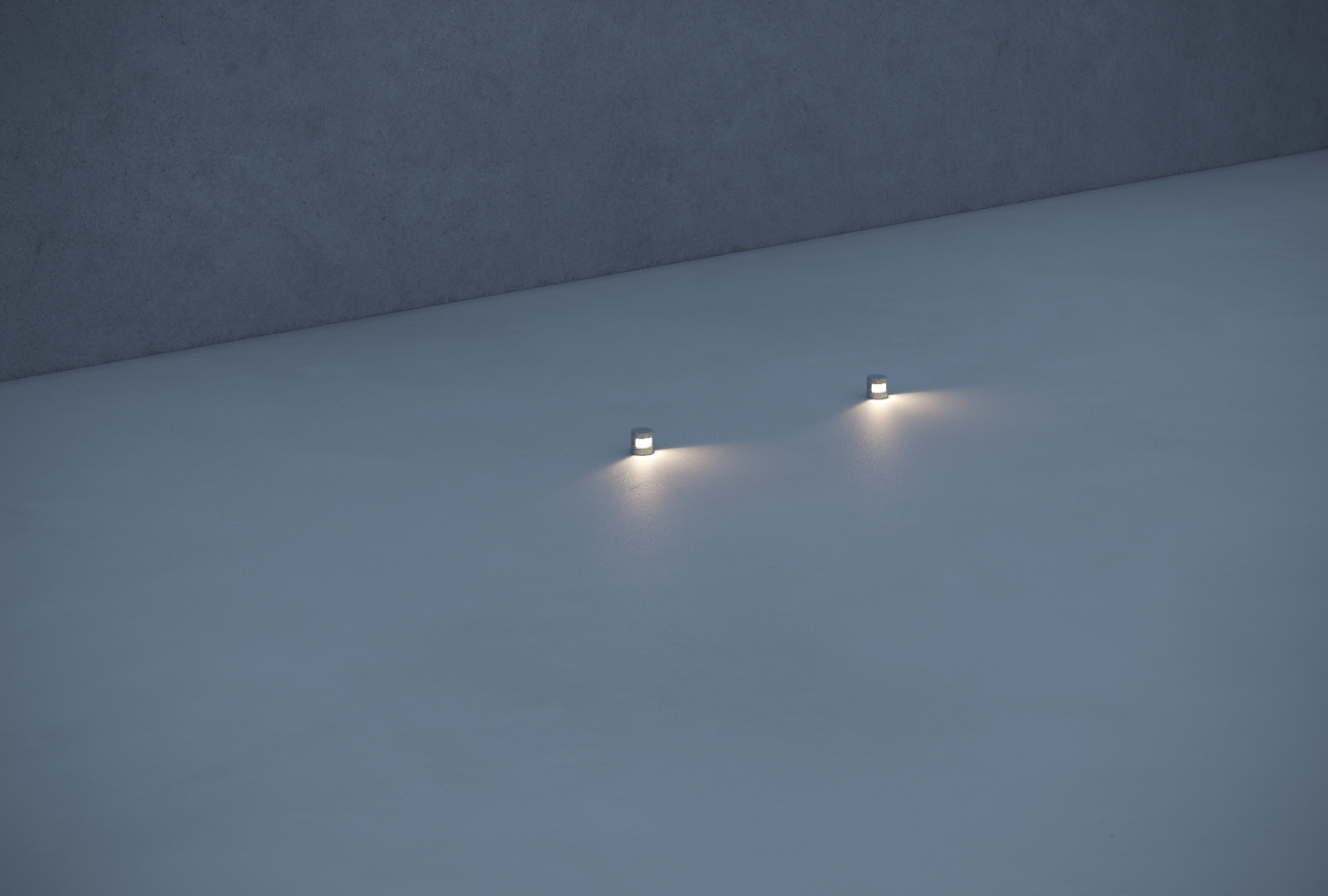

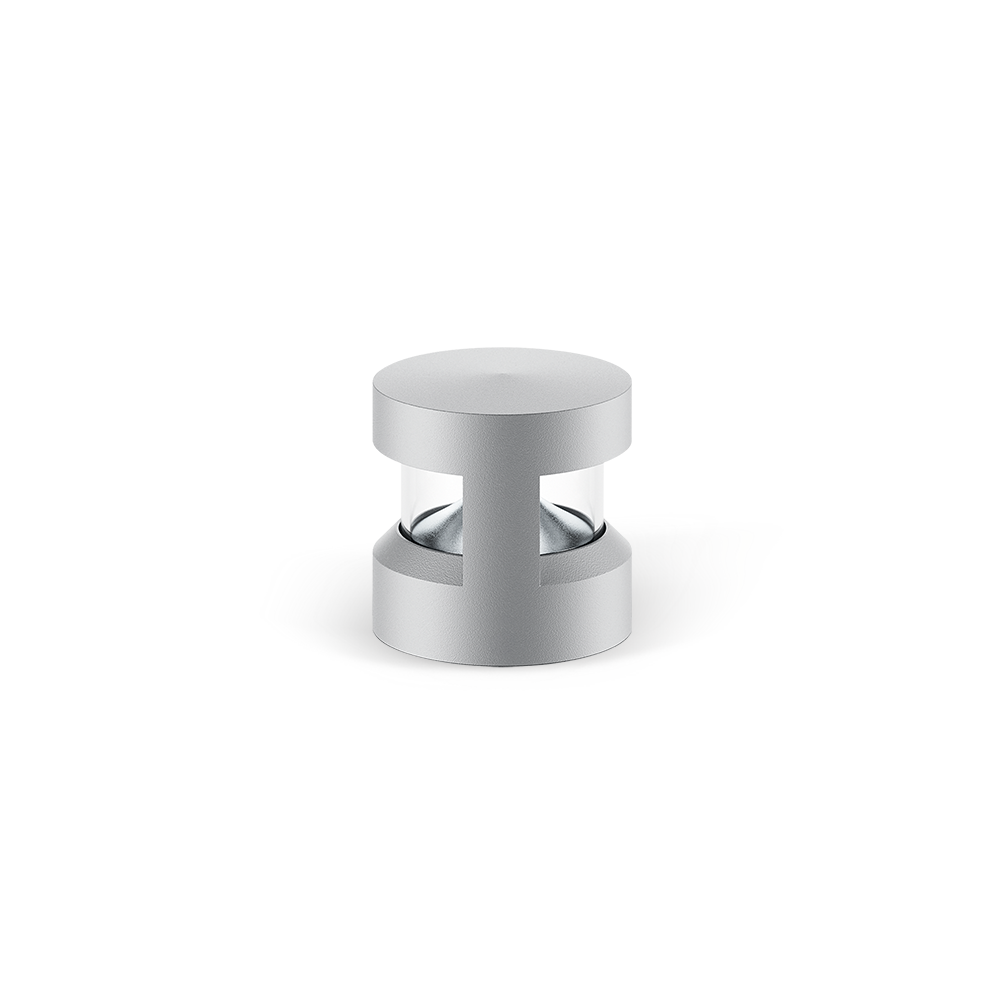

200 - SINGLE EMISSION
Simulated with Menhir
15,5 W 3000K
Optics: 1-E
Code: 4032611
Distance between products: 3 metres
15,5 W 3000K
Optics: 1-E
Code: 4032611
Distance between products: 3 metres

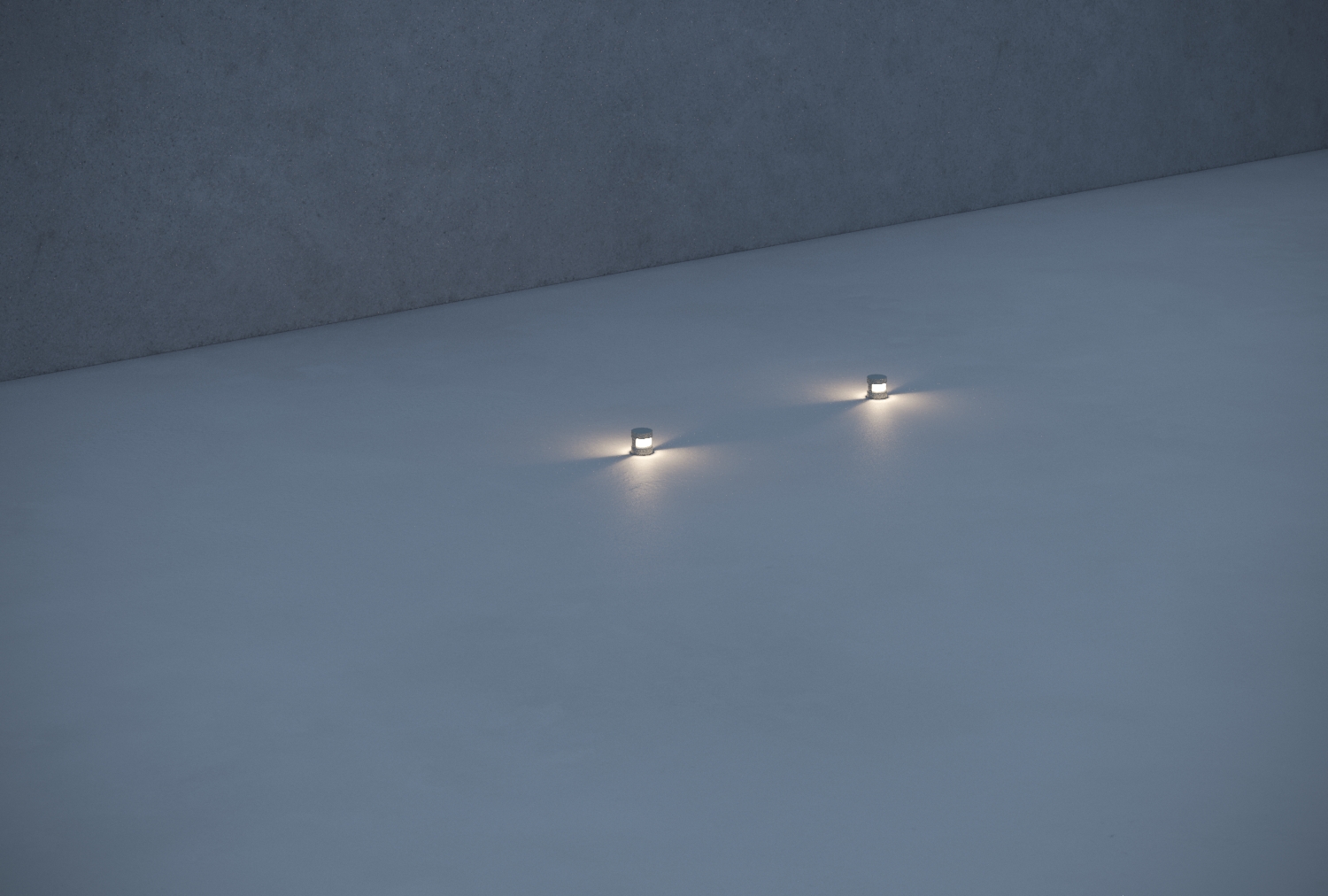

200 - DOUBLE EMISSION
Simulated with Menhir
15,5 W 3000K
Optics: 2-E
Code: 4032612
Distance between products: 3 metres
15,5 W 3000K
Optics: 2-E
Code: 4032612
Distance between products: 3 metres

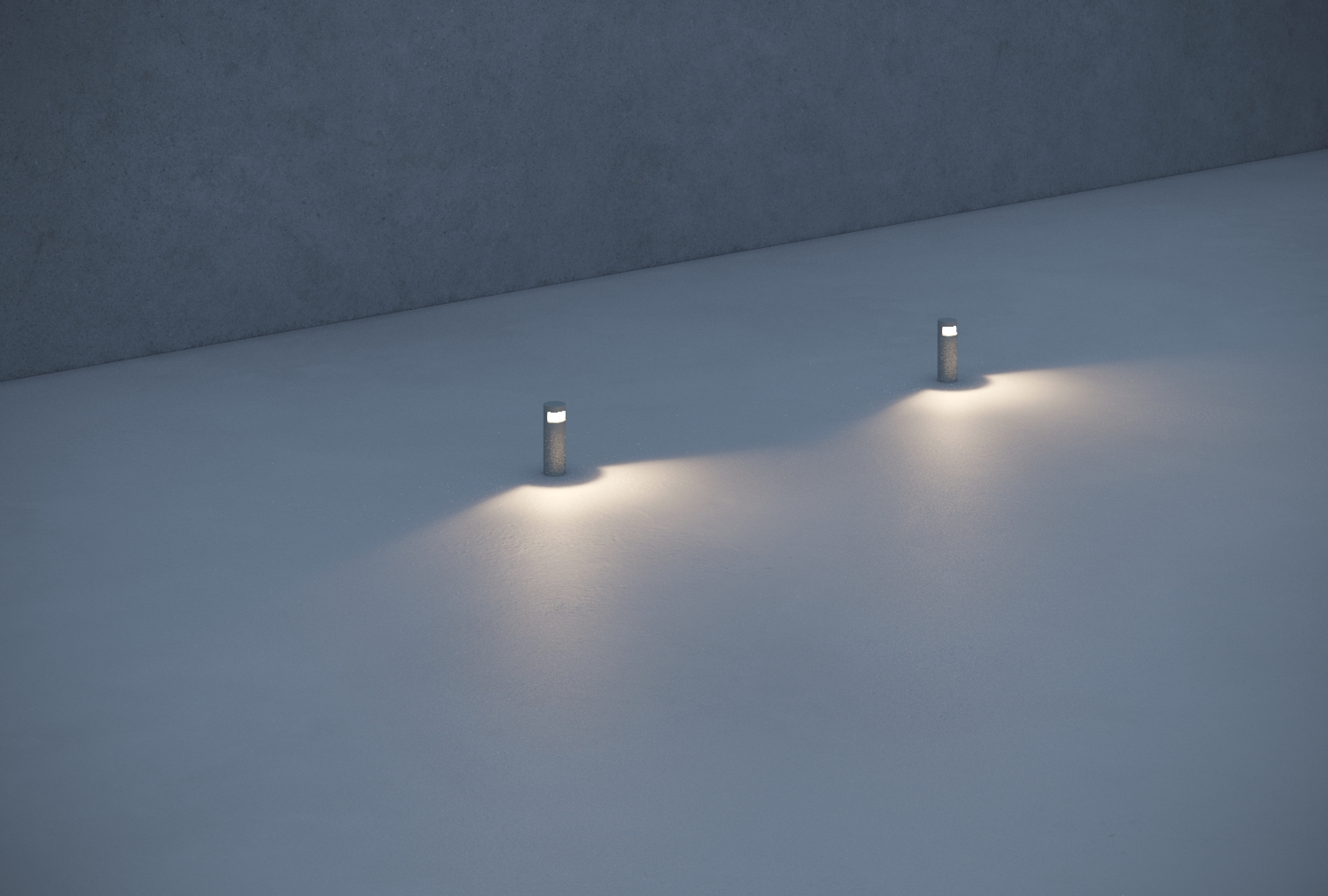

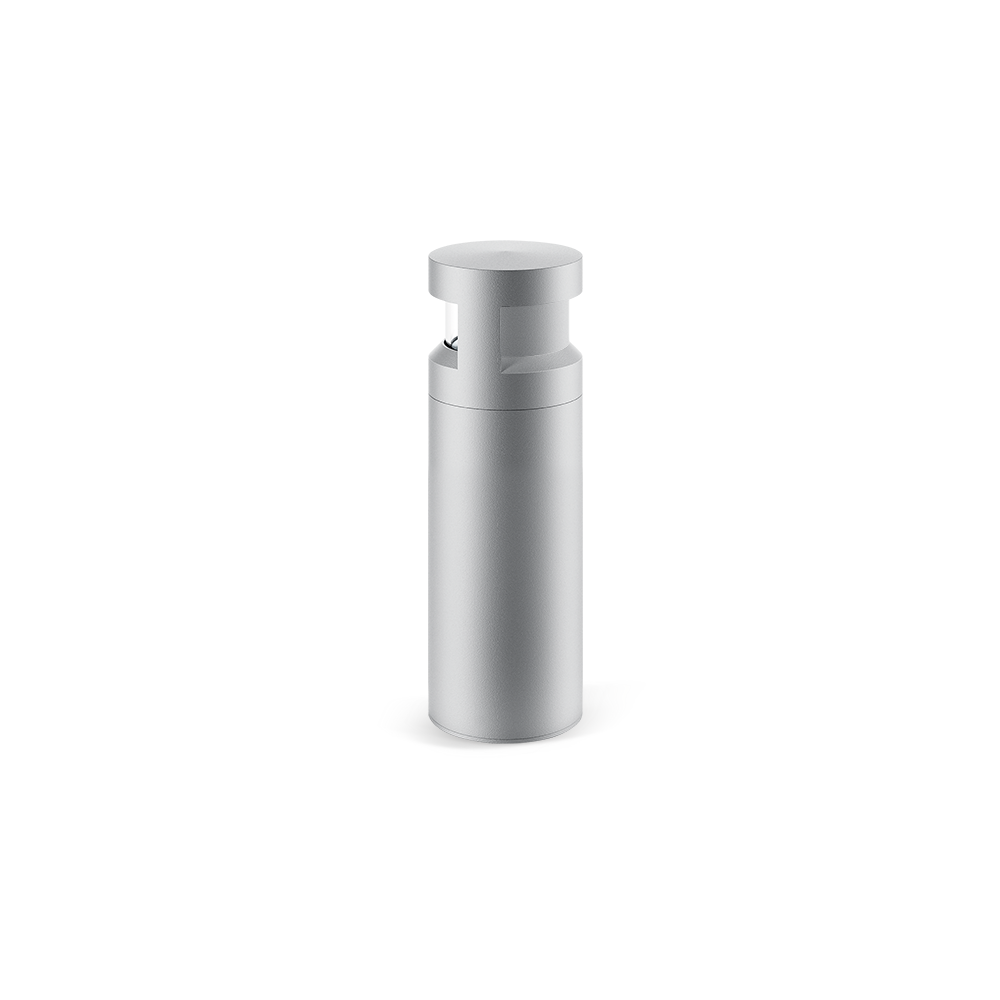

620 - SINGLE EMISSION
Simulated with Menhir
20,0 W 3000K
Optics: 1-E
Code: 4052611
Distance between products: 5 metres
20,0 W 3000K
Optics: 1-E
Code: 4052611
Distance between products: 5 metres

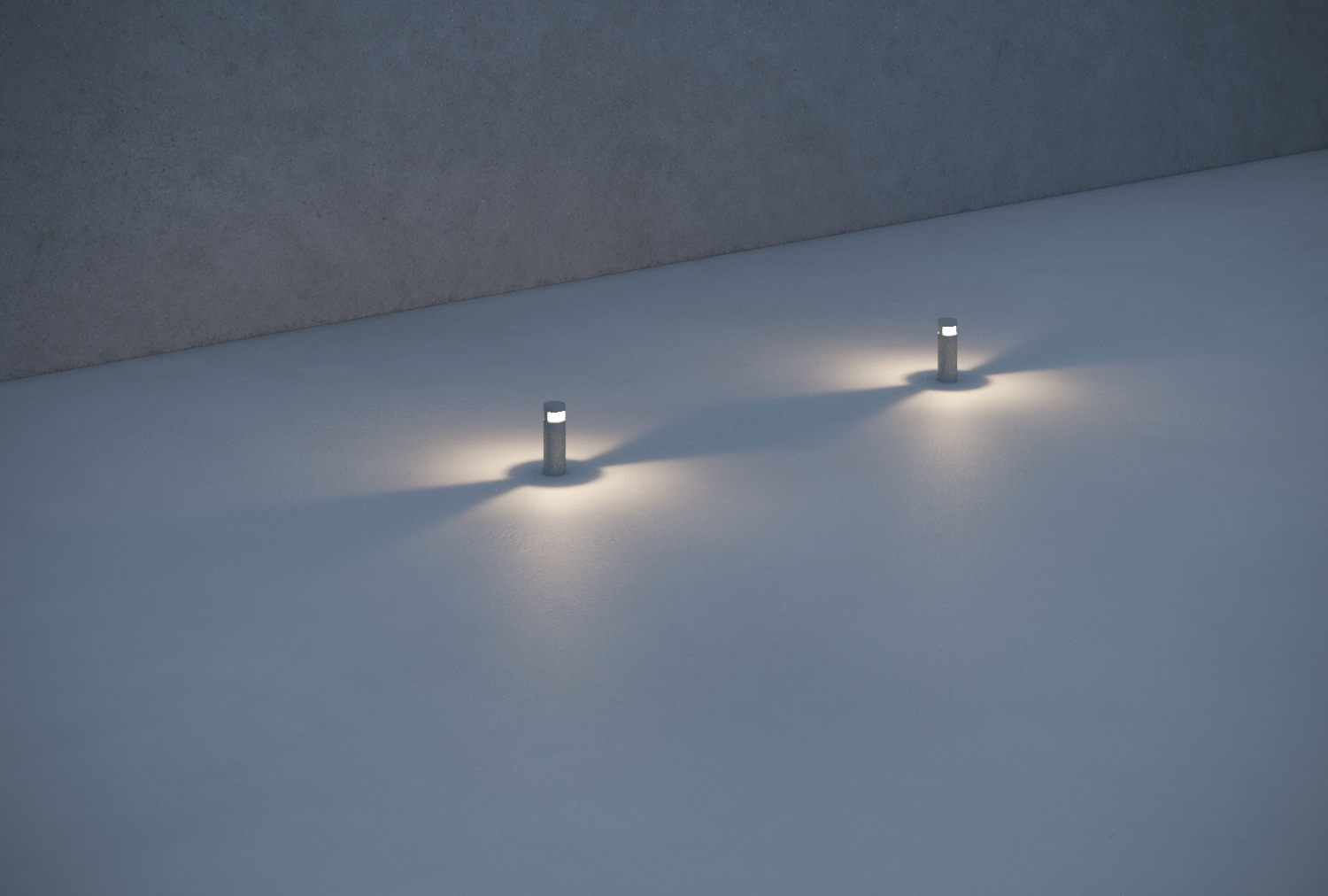

620 - DOUBLE EMISSION
Simulated with Menhir
20,0 W 3000K
Optics: 2-E
Code: 4052612
Distance between products: 5 metres
20,0 W 3000K
Optics: 2-E
Code: 4052612
Distance between products: 5 metres

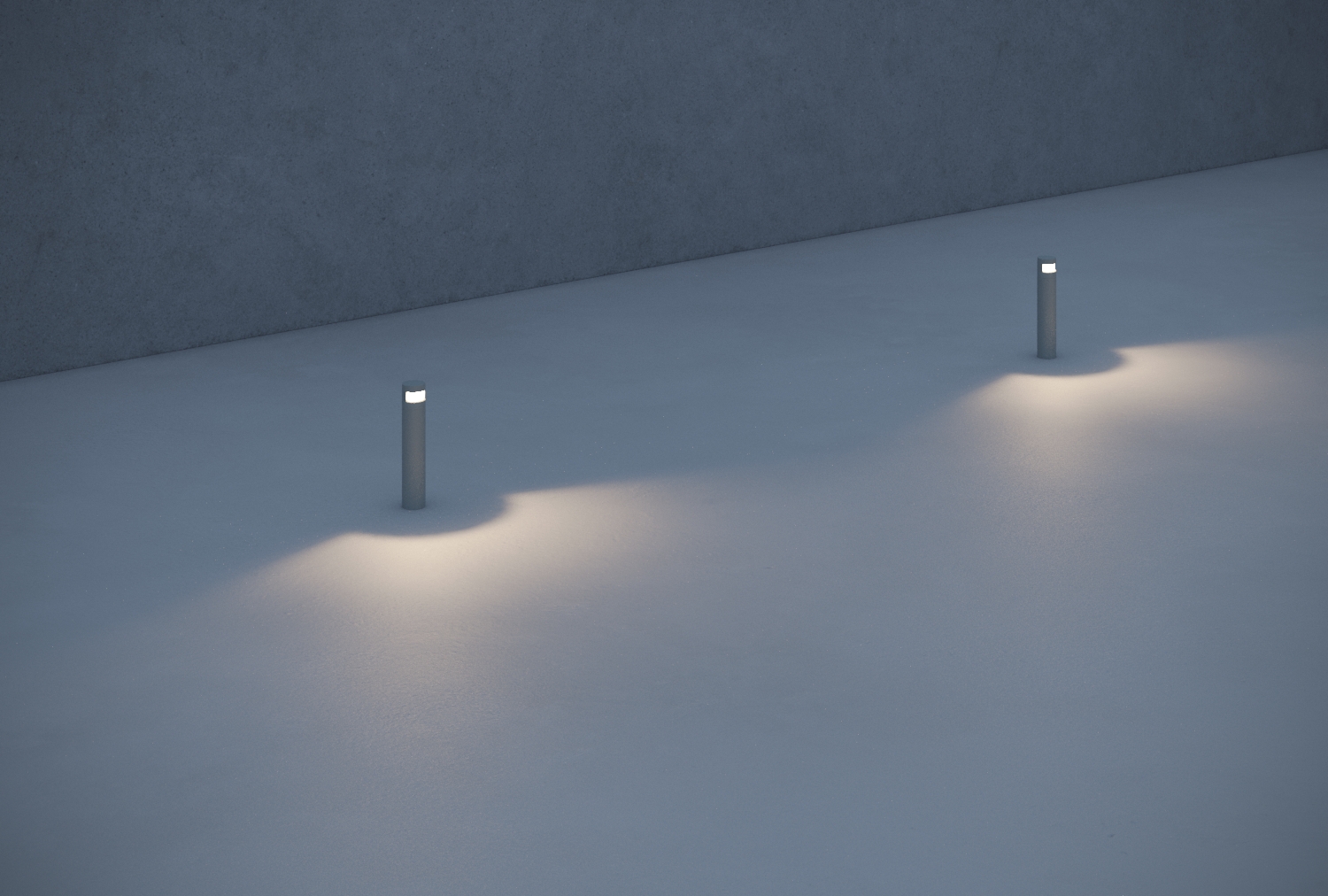

1050 - SINGLE EMISSION
Simulated with Menhir
40,0 W 3000K
Optics: 1-E
Code: 4082611
Distance between products: 8 metres
40,0 W 3000K
Optics: 1-E
Code: 4082611
Distance between products: 8 metres

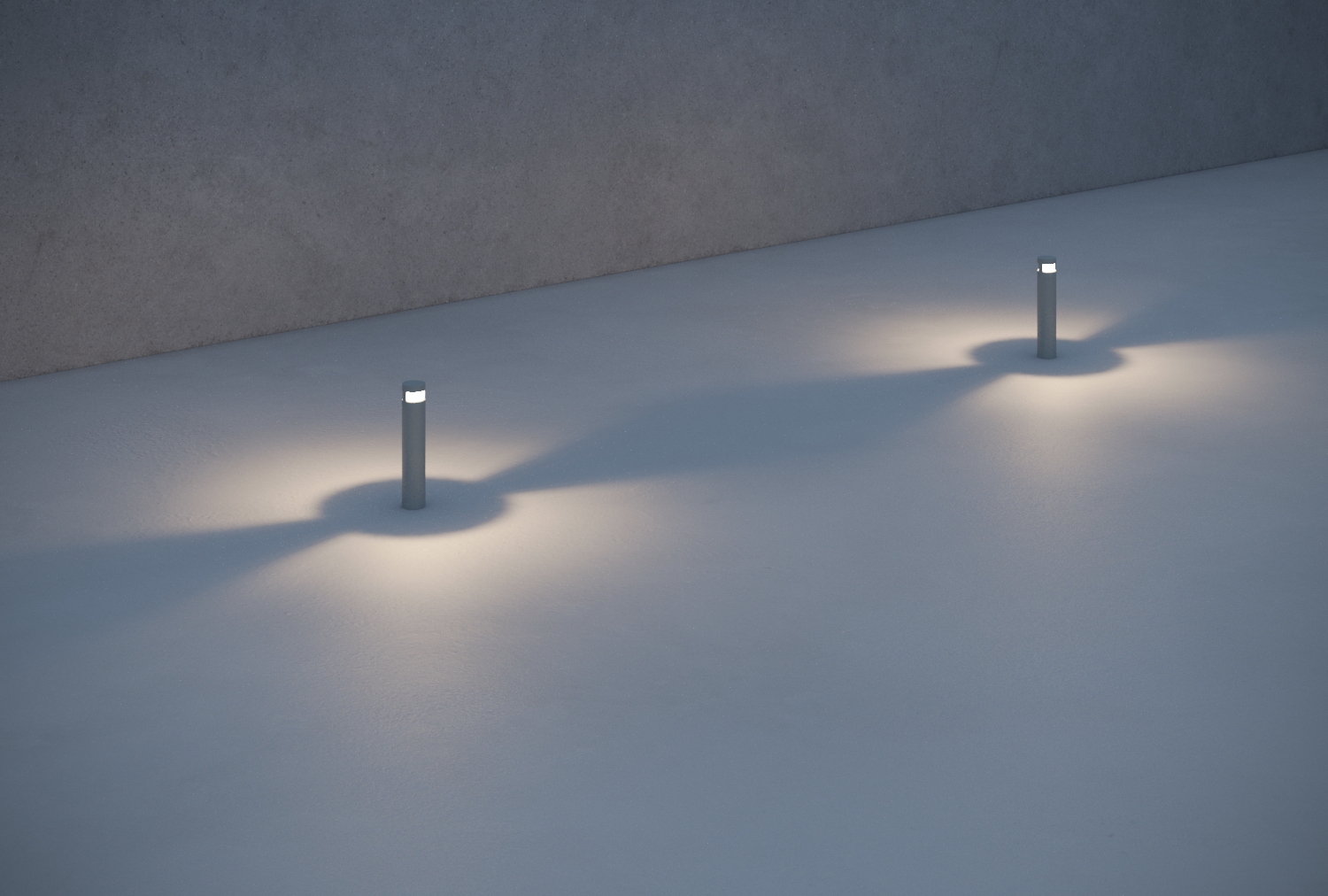

1050 - DOUBLE EMISSION
Simulated with Menhir
40,0 W 3000K
Optics: 2-E
Code: 4082612
Distance between products: 8 metres
40,0 W 3000K
Optics: 2-E
Code: 4082612
Distance between products: 8 metres
Select your product
Use the filters to choose the most suitable product for your needs

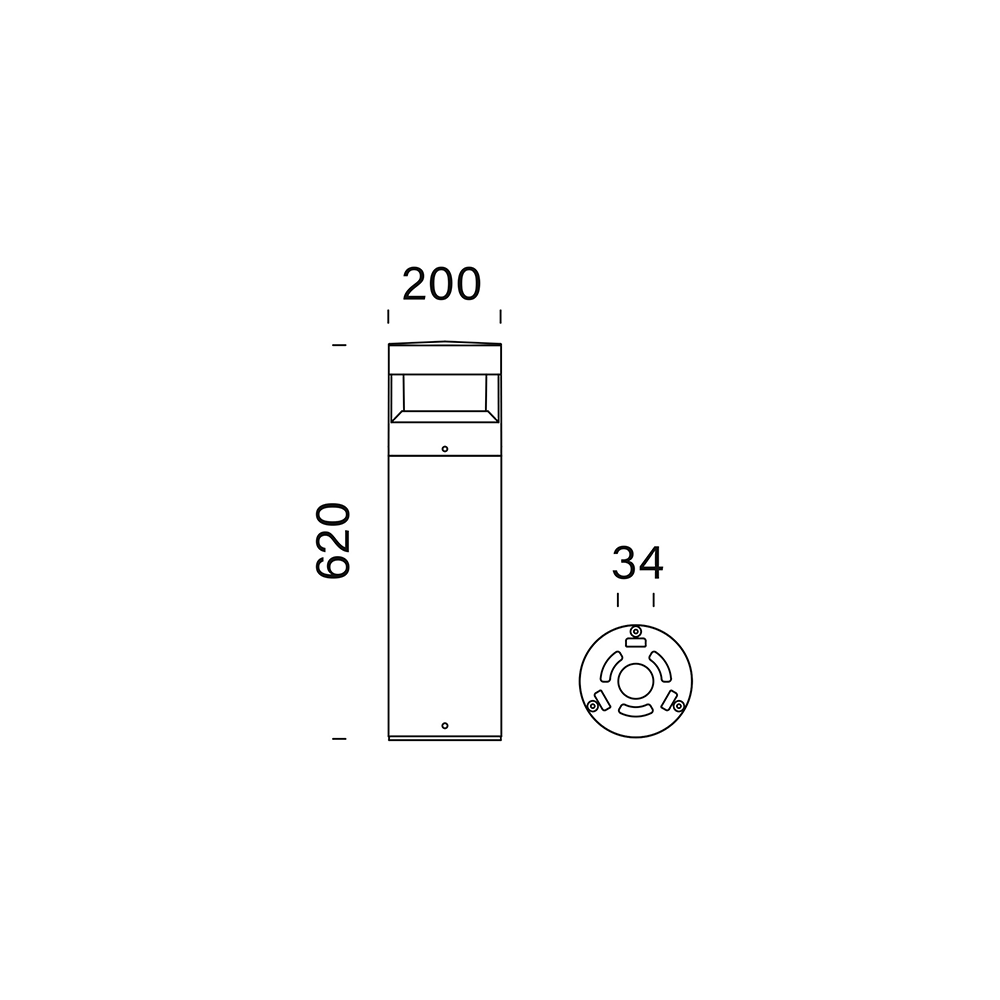

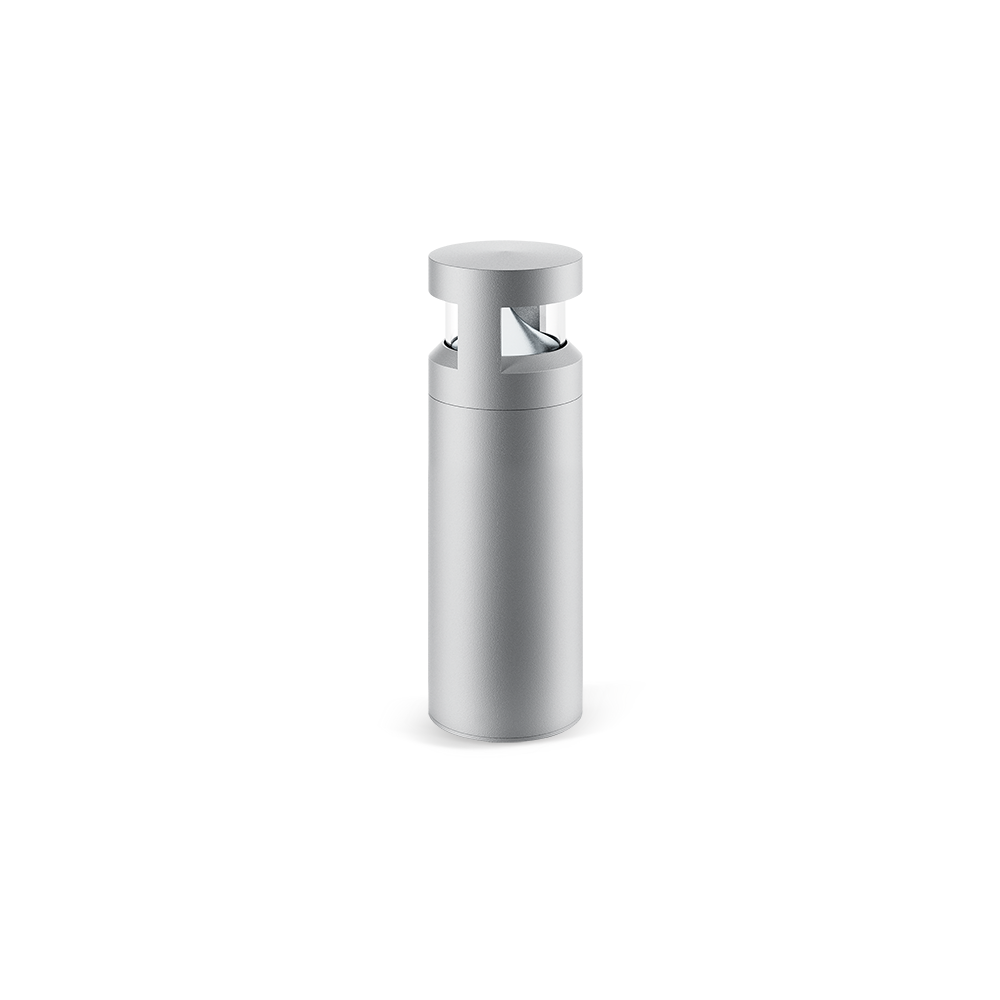

Menhir bollard
Menhir
100
DISCOVER

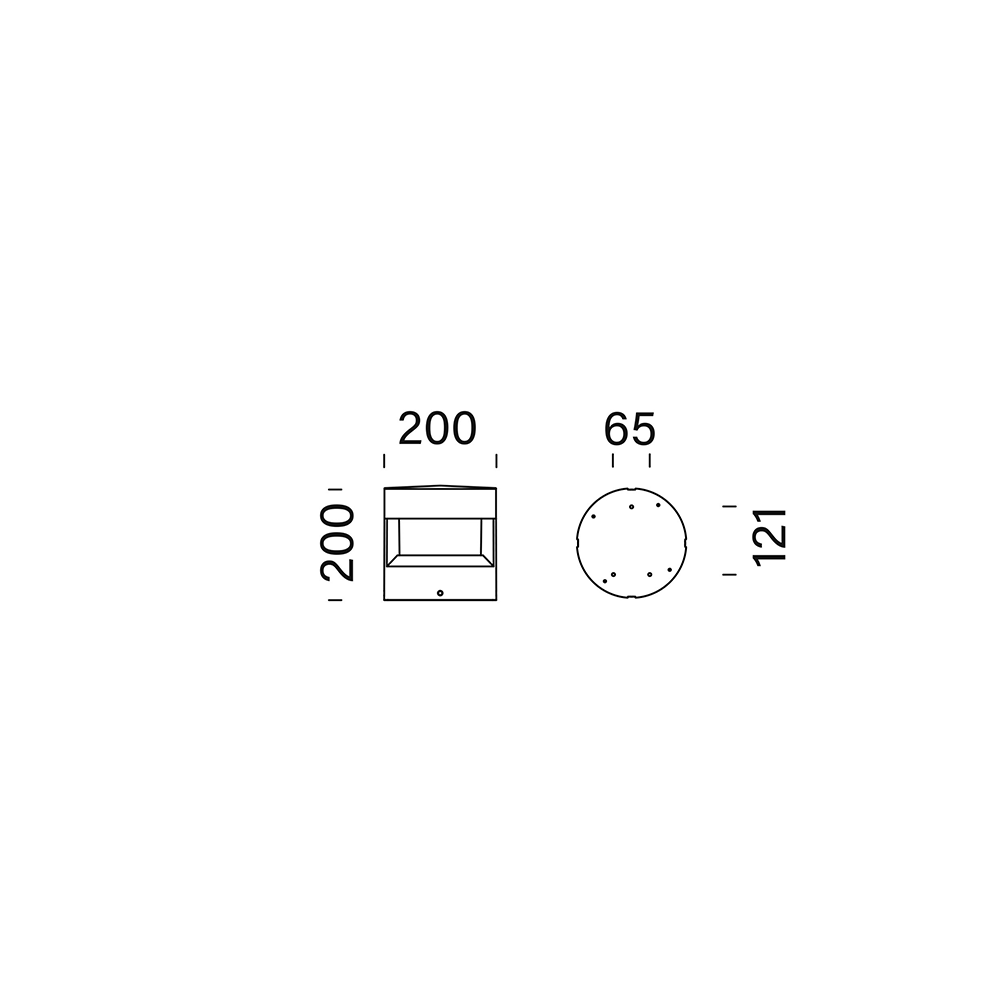

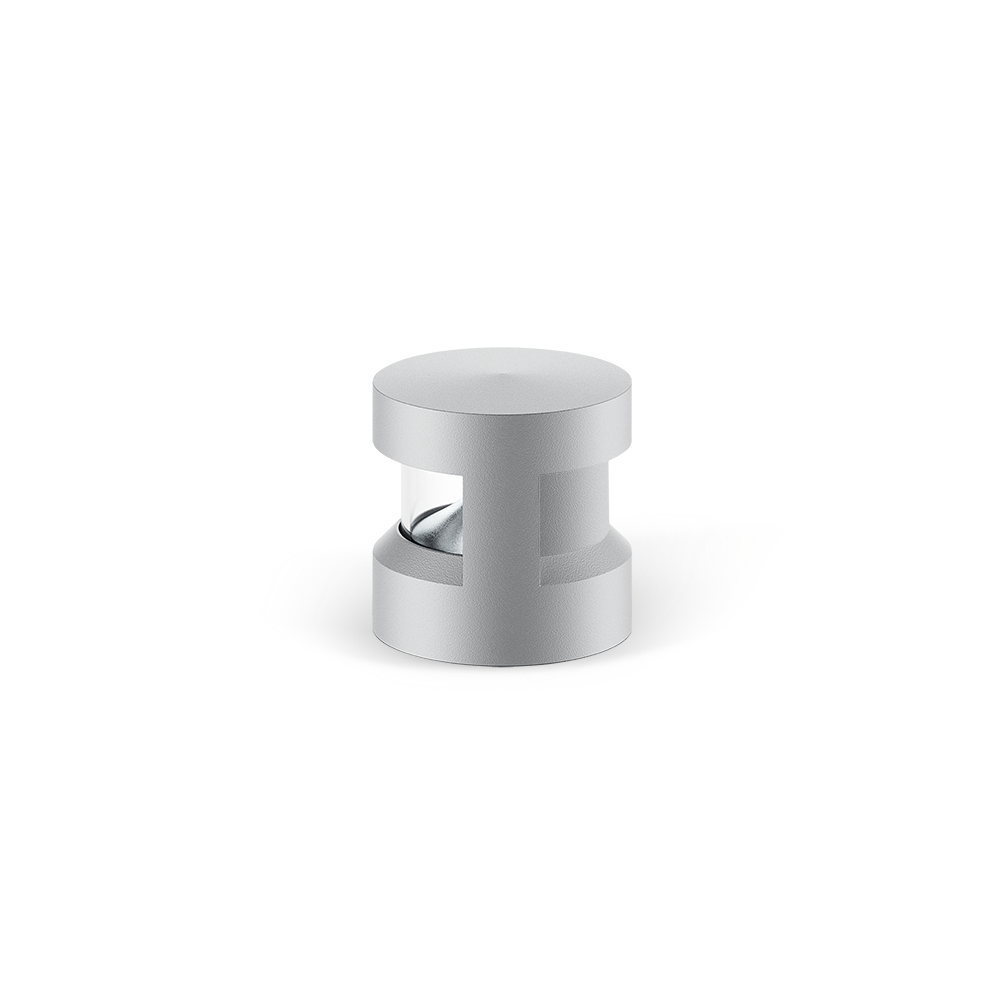

Menhir bollard
Menhir
20
DISCOVER

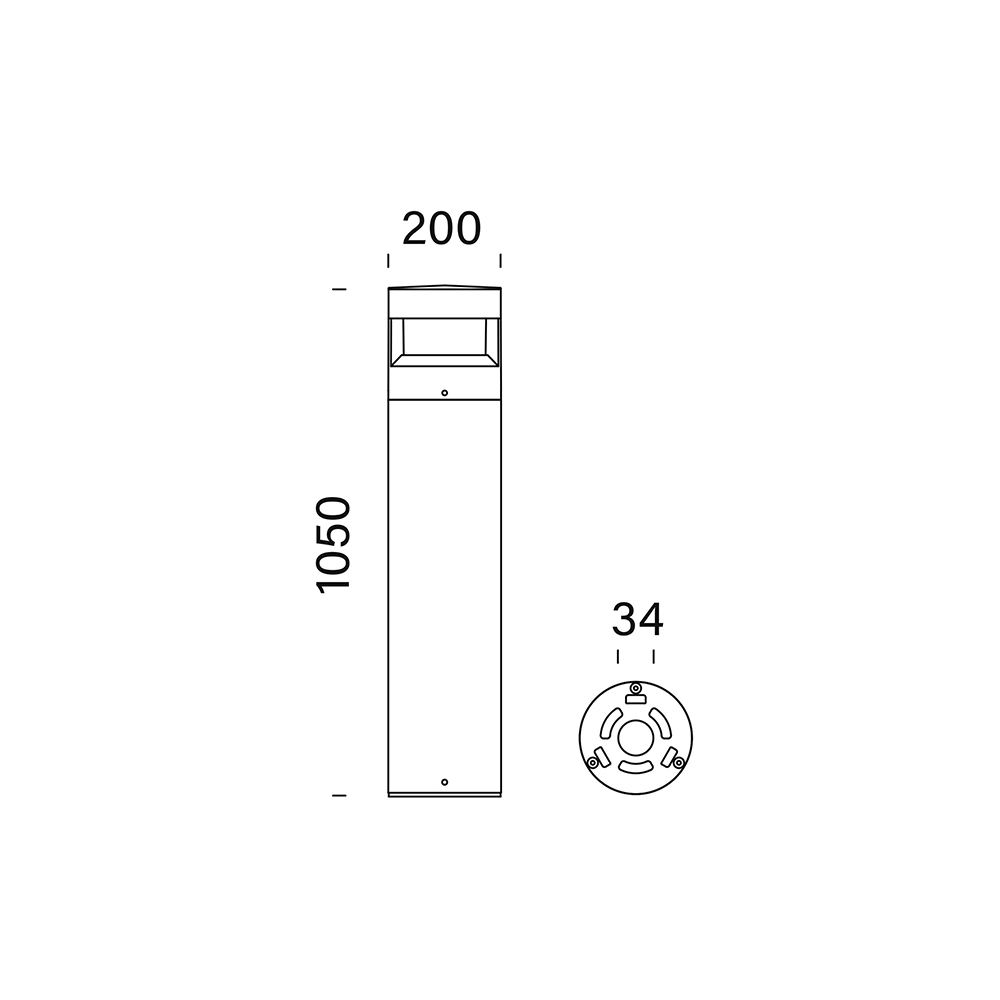

Menhir bollard
Menhir
60
DISCOVER
Source power range
Luminous flux range
Colour temperature
Dimmable
Beam angle
| Product code | Description | LED wattage | System wattage | Optics | Dimmable | Power supply | ||
|---|---|---|---|---|---|---|---|---|
|
4032691 | Menhir 20 bollard - 1 COB LED 2700K 1-E | 12,0 W | 15,5 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4032611 | Menhir 20 bollard - 1 COB LED 3000K 1-E | 12,0 W | 15,5 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4032661 | Menhir 20 bollard - 1 COB LED 4000K 1-E | 12,0 W | 15,5 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
4032692 | Menhir 20 bollard - 1 COB LED 2700K 2-E | 12,0 W | 15,5 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4032612 | Menhir 20 bollard - 1 COB LED 3000K 2-E | 12,0 W | 15,5 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4032662 | Menhir 20 bollard - 1 COB LED 4000K 2-E | 12,0 W | 15,5 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
4052691 | Menhir 60 bollard - 1 COB LED 2700K 1-E | 18,0 W | 20,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4052611 | Menhir 60 bollard - 1 COB LED 3000K 1-E | 18,0 W | 20,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4052661 | Menhir 60 bollard - 1 COB LED 4000K 1-E | 18,0 W | 20,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4052691DALI | Menhir 60 bollard - 1 COB LED 2700K 1-E | 18,0 W | 20,0 W | 1-E | DALI | 220 ÷ 240V | |
|
|
4052611DALI | Menhir 60 bollard - 1 COB LED 3000K 1-E | 18,0 W | 20,0 W | 1-E | DALI | 220 ÷ 240V | |
|
|
4052661DALI | Menhir 60 bollard - 1 COB LED 4000K 1-E | 18,0 W | 20,0 W | 1-E | DALI | 220 ÷ 240V | |
|
4052692 | Menhir 60 bollard - 1 COB LED 2700K 2-E | 18,0 W | 20,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4052612 | Menhir 60 bollard - 1 COB LED 3000K 2-E | 18,0 W | 20,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4052662 | Menhir 60 bollard - 1 COB LED 4000K 2-E | 18,0 W | 20,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4052692DALI | Menhir 60 bollard - 1 COB LED 2700K 2-E | 18,0 W | 20,0 W | 2-E | DALI | 220 ÷ 240V | |
|
|
4052612DALI | Menhir 60 bollard - 1 COB LED 3000K 2-E | 18,0 W | 20,0 W | 2-E | DALI | 220 ÷ 240V | |
|
|
4052662DALI | Menhir 60 bollard - 1 COB LED 4000K 2-E | 18,0 W | 20,0 W | 2-E | DALI | 220 ÷ 240V | |
|
4082691 | Menhir 100 bollard - 1 COB LED 2700K 1-E | 36,0 W | 40,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4082611 | Menhir 100 bollard - 1 COB LED 3000K 1-E | 36,0 W | 40,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4082661 | Menhir 100 bollard - 1 COB LED 4000K 1-E | 36,0 W | 40,0 W | 1-E | ON/OFF | 220 ÷ 240V | |
|
|
4082691DALI | Menhir 100 bollard - 1 COB LED 2700K 1-E | 36,0 W | 40,0 W | 1-E | DALI | 220 ÷ 240V | |
|
|
4082611DALI | Menhir 100 bollard - 1 COB LED 3000K 1-E | 36,0 W | 40,0 W | 1-E | DALI | 220 ÷ 240V | |
|
|
4082661DALI | Menhir 100 bollard - 1 COB LED 4000K 1-E | 36,0 W | 40,0 W | 1-E | DALI | 220 ÷ 240V | |
|
4082692 | Menhir 100 bollard - 1 COB LED 2700K 2-E | 36,0 W | 40,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4082612 | Menhir 100 bollard - 1 COB LED 3000K 2-E | 36,0 W | 40,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4082662 | Menhir 100 bollard - 1 COB LED 4000K 2-E | 36,0 W | 40,0 W | 2-E | ON/OFF | 220 ÷ 240V | |
|
|
4082692DALI | Menhir 100 bollard - 1 COB LED 2700K 2-E | 36,0 W | 40,0 W | 2-E | DALI | 220 ÷ 240V | |
|
|
4082612DALI | Menhir 100 bollard - 1 COB LED 3000K 2-E | 36,0 W | 40,0 W | 2-E | DALI | 220 ÷ 240V | |
|
|
4082662DALI | Menhir 100 bollard - 1 COB LED 4000K 2-E | 36,0 W | 40,0 W | 2-E | DALI | 220 ÷ 240V |
