Mini Corniche
Mini Corniche
Description
A very wide series of light fittings with linear design and high efficiency. The applications are almost limitless: from the lighting of facades and big walls to the enhancement of monuments or architectures. A lighting system that is flexible and customizable, available in various sizes and powers. The stainless steel product can operate in immersion and out of water. Mini Corniche is developed as recessed walk over fitting or to light the surfaces from below and as a wall light.
Download
Gallery
Mini Corniche
Overview
Extruded aluminium alloy body. A4 Stainless steel screws. External power supply with 24V DC constant-current transformer, to be wired in parallel. Fixation flange in stainless steel AISI 316. GORE® valve to prevent condensing. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process (epoxy-based primer + polyester-based colour finish), which allows to generate a single thick protective coating which then generates aprotective barrier against atmospheric agents and UV rays. Before fixing the diffuser on the Platek products a Pre-treatment using an atmospheric pressure plasma process is carried out on the surface. The process activates the ionic load on the surface exactly where it is needed, thus promoting the best silicone grip possible and removing any residual release of agents for a longer lasting seal. The next steps are the coating of silicone and the assembly of the diffuser on the lighting fixture, with an automated process to guarantee the perfect sealing of the lamp.
- IP65
- IK06
- LED
Light effect

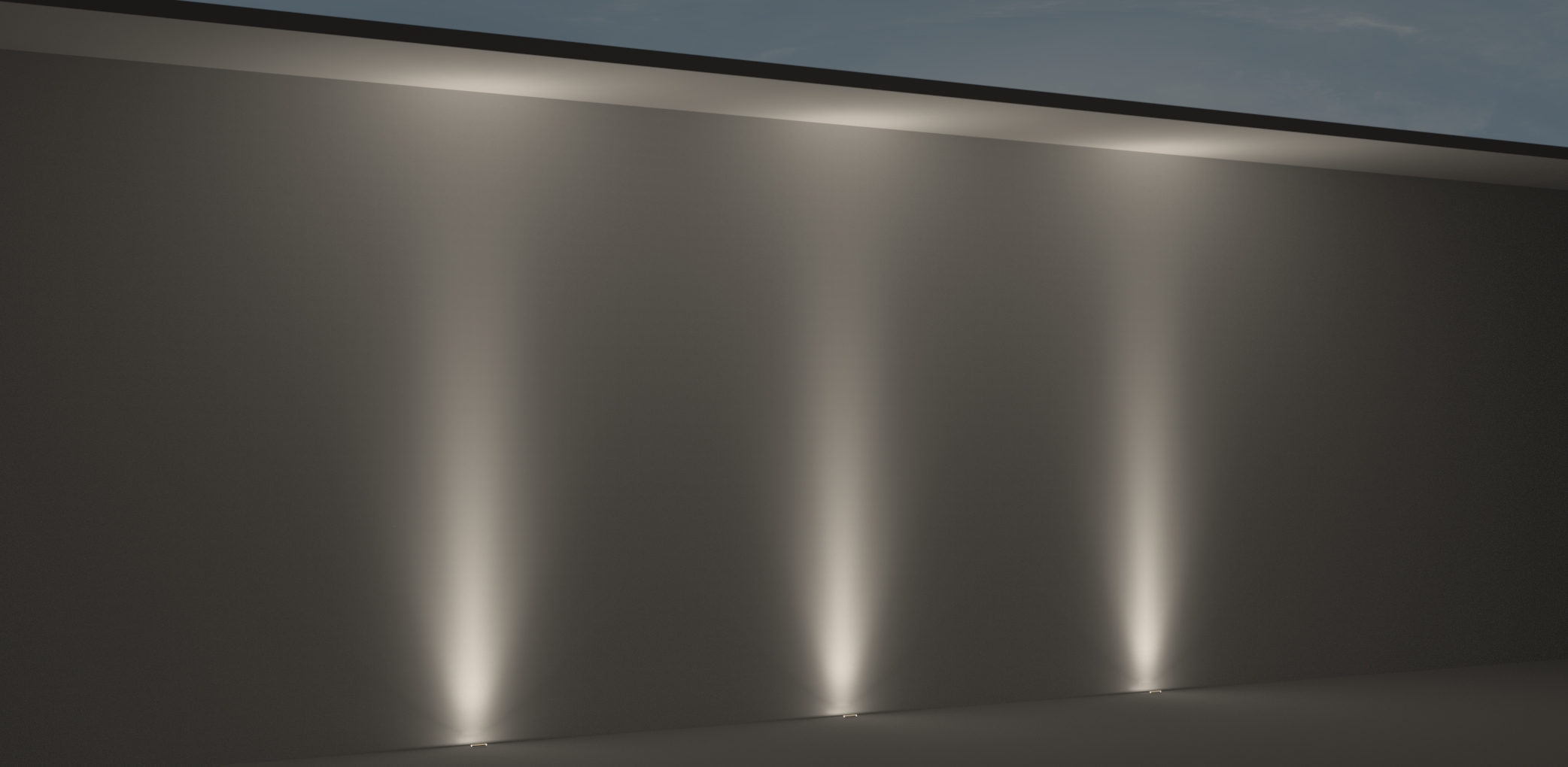

NARROW
Simulated with Mini Corniche
3000K
Optics: 13°
Code: 8411311
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres
3000K
Optics: 13°
Code: 8411311
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres

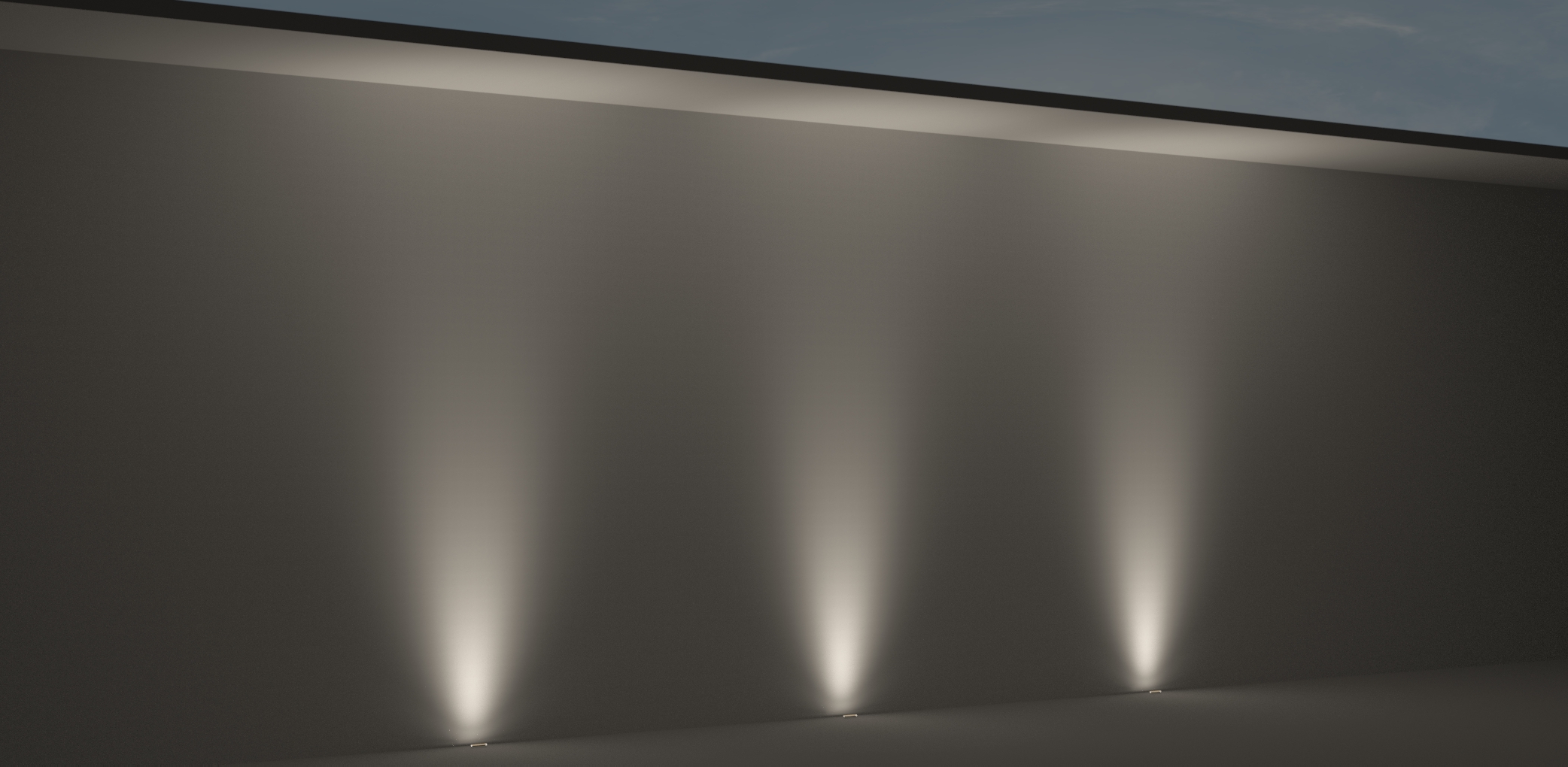

MEDIUM
Simulated with Mini Corniche
3000K
Optics: 26°
Code: 8411313
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres
3000K
Optics: 26°
Code: 8411313
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres

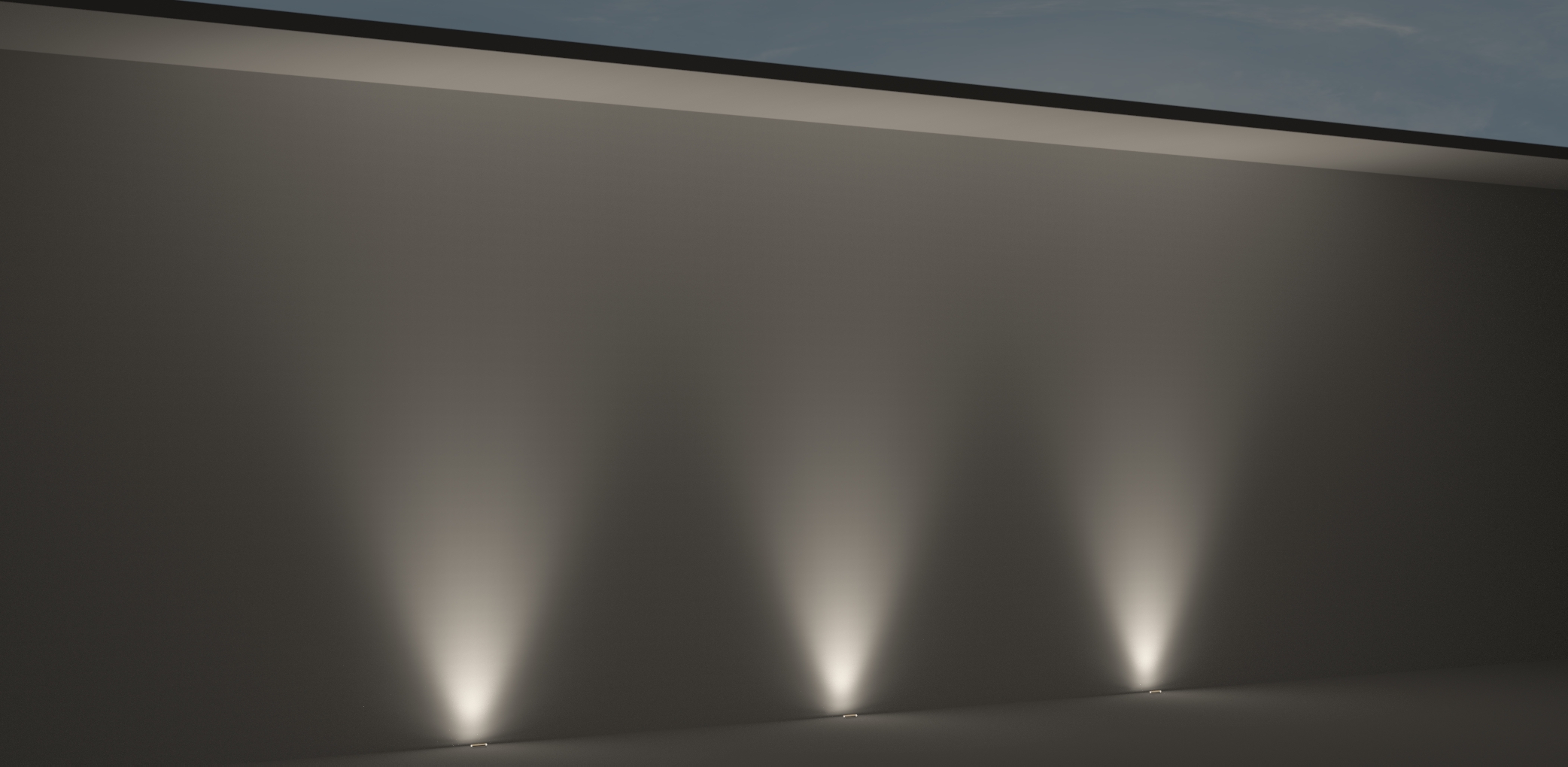

WIDE
Simulated with Mini Corniche
3000K
Optics: 40°
Code: 8411318
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres
3000K
Optics: 40°
Code: 8411318
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres

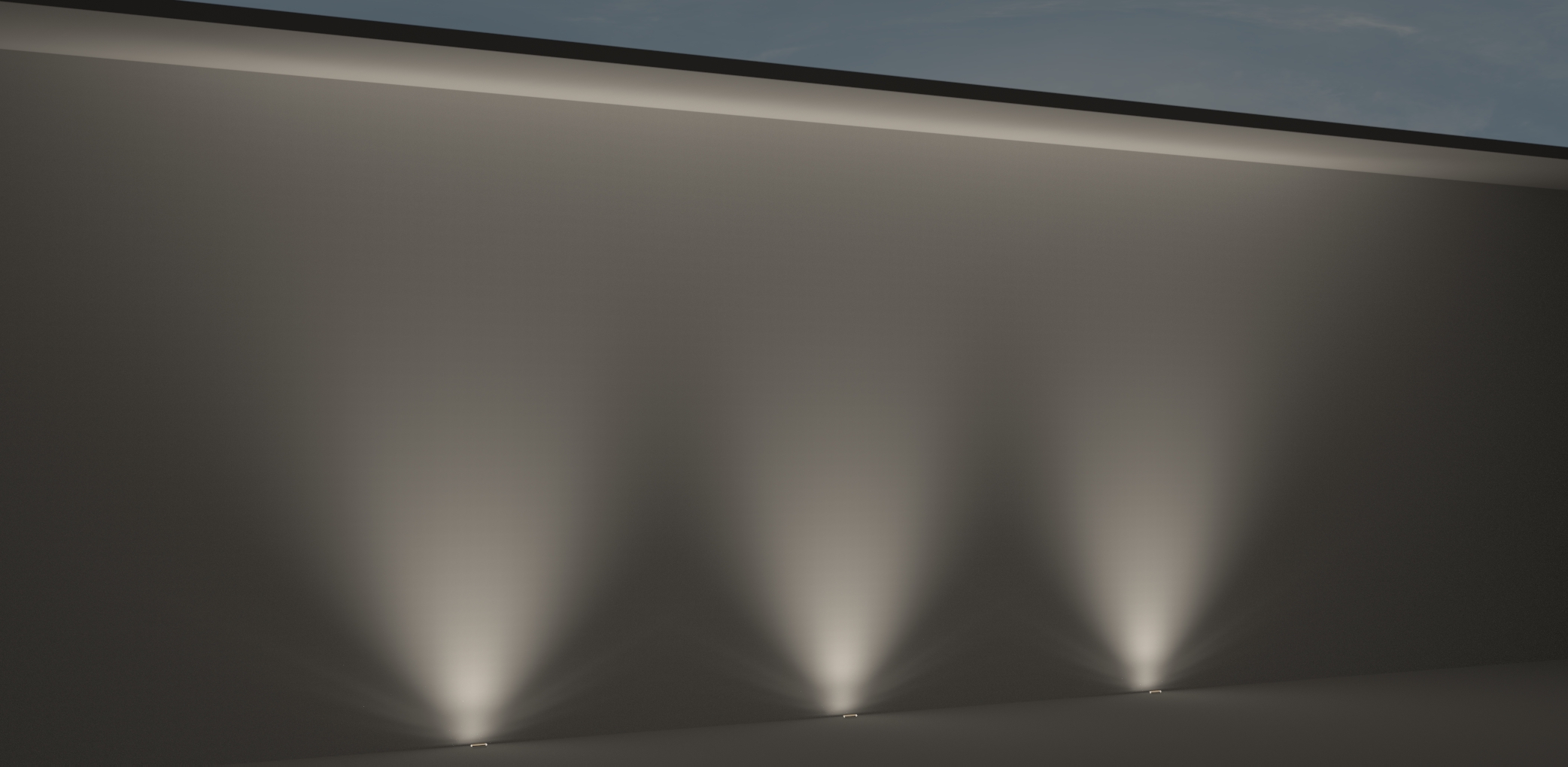

ELLIPTICAL
Simulated with Mini Corniche
3000K
Optics: Elliptical
Code: 8411317
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres
3000K
Optics: Elliptical
Code: 8411317
Distance from wall: 0.3 metres
Distance between products: 8 metres
Wall height: 12 metres

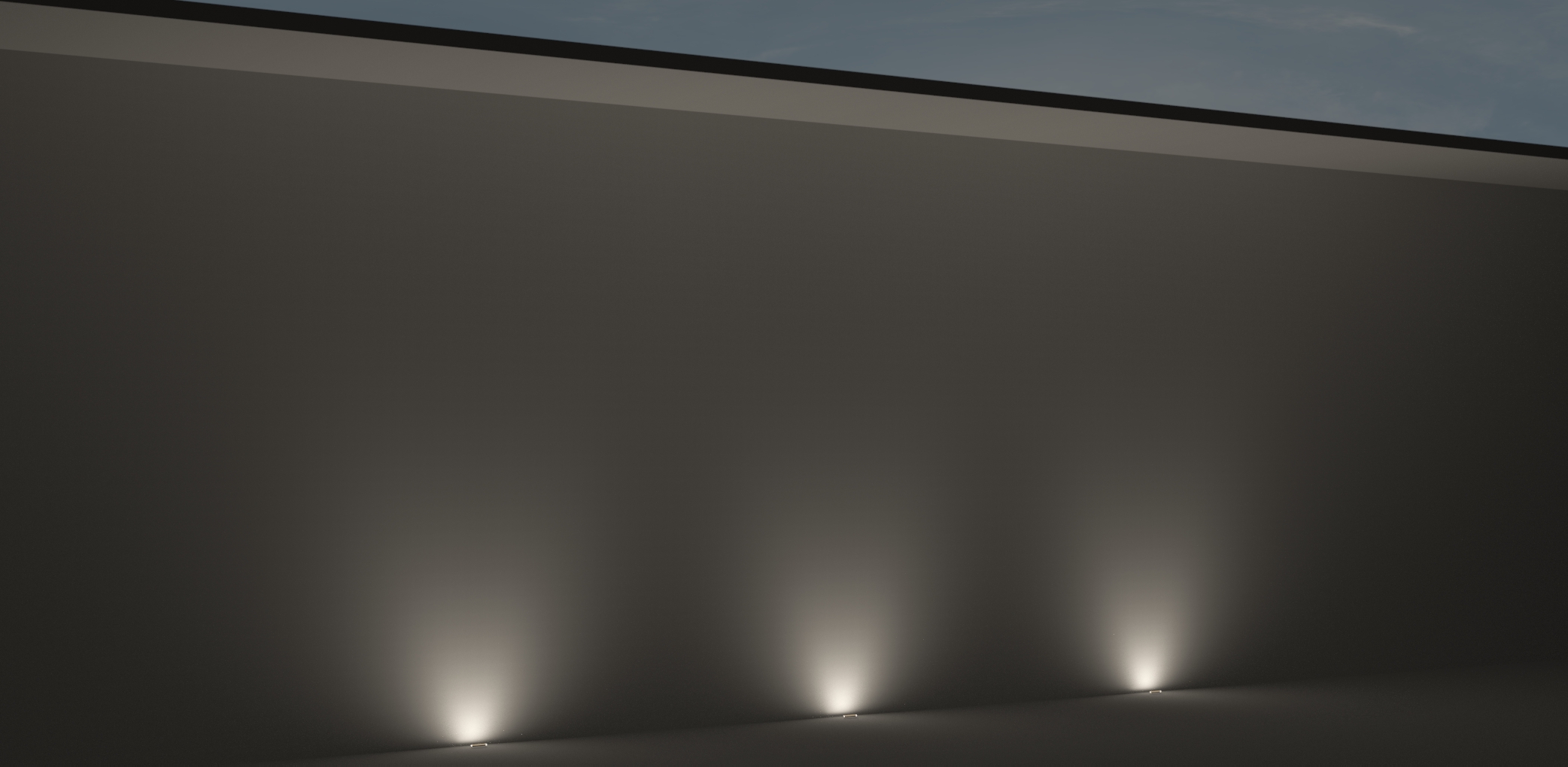

DIFFUSE
Simulated with Mini Corniche
3000K
Optics: Diffuse
Code: 8411316
Distance from wall: 0,3 metres
Distance between products: 8 metres
Wall height: 12 metres
3000K
Optics: Diffuse
Code: 8411316
Distance from wall: 0,3 metres
Distance between products: 8 metres
Wall height: 12 metres
Select your product
Use the filters to choose the most suitable product for your needs
Source power range
Luminous flux range
Colour temperature
CRI
Power Supply Unit
Beam angle
Optical accessories
Beam aperture
Use the filters to find the most suitable aperture beam for your needs, among those available.
Spot
Medium
Medium-Wide
| Product code | Description | LED wattage | System wattage | Optics | Dimmable | Power supply | ||
|---|---|---|---|---|---|---|---|---|
|
8411191 | Mini Corniche 10 wall mounted - LED 2700K 13° | 3,5 W | 13° | PWM | 24V | ||
|
|
8411111 | Mini Corniche 10 wall mounted - LED 3000K 13° | 3,5 W | 13° | PWM | 24V | ||
|
|
8411161 | Mini Corniche 10 wall mounted - LED 4000K 13° | 3,5 W | 13° | PWM | 24V | ||
|
|
8411193 | Mini Corniche 10 wall mounted - LED 2700K 26° | 3,5 W | 26° | PWM | 24V | ||
|
|
8411113 | Mini Corniche 10 wall mounted - LED 3000K 26° | 3,5 W | 26° | PWM | 24V | ||
|
|
8411163 | Mini Corniche 10 wall mounted - LED 4000K 26° | 3,5 W | 26° | PWM | 24V | ||
|
|
8411198 | Mini Corniche 10 wall mounted - LED 2700K 40° | 3,5 W | 40° | PWM | 24V | ||
|
|
8411118 | Mini Corniche 10 wall mounted - LED 3000K 40° | 3,5 W | 40° | PWM | 24V | ||
|
|
8411168 | Mini Corniche 10 wall mounted - LED 4000K 40° | 3,5 W | 40° | PWM | 24V | ||
|
|
8411197 | Mini Corniche 10 wall mounted - LED 2700K Elliptical | 3,5 W | Elliptical | PWM | 24V | ||
|
|
8411117 | Mini Corniche 10 wall mounted - LED 3000K Elliptical | 3,5 W | Elliptical | PWM | 24V | ||
|
|
8411167 | Mini Corniche 10 wall mounted - LED 4000K Elliptical | 3,5 W | Elliptical | PWM | 24V | ||
|
8411196 | Mini Corniche 10 wall mounted - LED 2700K Diffuse | 1,5 W | Diffuse | PWM | 24V | ||
|
|
8411116 | Mini Corniche 10 wall mounted - LED 3000K Diffuse | 1,5 W | Diffuse | PWM | 24V | ||
|
|
8411166 | Mini Corniche 10 wall mounted - LED 4000K Diffuse | 1,5 W | Diffuse | PWM | 24V | ||
|
8391103 | Mini Corniche 10 wall mounted - 4 LED RGBW 26° | Max 6,0 W | Max 6,0 W | 26° | PWM | Max 500mA | |
|
|
8391108 | Mini Corniche 10 wall mounted - 4 LED RGBW 40° | Max 6,0 W | Max 6,0 W | 40° | PWM | Max 500mA | |
|
|
8391107 | Mini Corniche 10 wall mounted - 4 LED RGBW Elliptical | Max 6,0 W | Max 6,0 W | Elliptical | PWM | Max 500mA | |
|
8411391 | Mini Corniche 30 wall mounted - LED 2700K 13° | 9,5 W | 13° | PWM | 24V | ||
|
|
8411311 | Mini Corniche 30 wall mounted - LED 3000K 13° | 9,5 W | 13° | PWM | 24V | ||
|
|
8411361 | Mini Corniche 30 wall mounted - LED 4000K 13° | 9,5 W | 13° | PWM | 24V | ||
|
|
8411393 | Mini Corniche 30 wall mounted - LED 2700K 26° | 9,5 W | 26° | PWM | 24V | ||
|
|
8411313 | Mini Corniche 30 wall mounted - LED 3000K 26° | 9,5 W | 26° | PWM | 24V | ||
|
|
8411363 | Mini Corniche 30 wall mounted - LED 4000K 26° | 9,5 W | 26° | PWM | 24V | ||
|
|
8411398 | Mini Corniche 30 wall mounted - LED 2700K 40° | 9,5 W | 40° | PWM | 24V | ||
|
|
8411318 | Mini Corniche 30 wall mounted - LED 3000K 40° | 9,5 W | 40° | PWM | 24V | ||
|
|
8411368 | Mini Corniche 30 wall mounted - LED 4000K 40° | 9,5 W | 40° | PWM | 24V | ||
|
|
8411317 | Mini Corniche 30 wall mounted - LED 3000K Elliptical | 9,5 W | Elliptical | PWM | 24V | ||
|
|
8411397 | Mini Corniche 30 wall mounted - LED 2700K Elliptical | 9,5 W | Elliptical | PWM | 24V | ||
|
|
8411367 | Mini Corniche 30 wall mounted - LED 4000K Elliptical | 9,5 W | Elliptical | PWM | 24V | ||
|
8411396 | Mini Corniche 30 wall mounted - LED 2700K Diffuse | 5,5 W | Diffuse | PWM | 24V | ||
|
|
8411316 | Mini Corniche 30 wall mounted - LED 3000K Diffuse | 5,5 W | Diffuse | PWM | 24V | ||
|
|
8411366 | Mini Corniche 30 wall mounted - LED 4000K Diffuse | 5,5 W | Diffuse | PWM | 24V | ||
|
8391303 | Mini Corniche 30 wall mounted - 8 LED RGBW 26° | Max 11,5 W | Max 11,5 W | 26° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391308 | Mini Corniche 30 wall mounted - 8 LED RGBW 40° | Max 11,5 W | Max 11,5 W | 40° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391307 | Mini Corniche 30 wall mounted - 8 LED RGBW Elliptical | Max 11,5 W | Max 11,5 W | Elliptical | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
8411591 | Mini Corniche 60 wall mounted - LED 2700K 13° | 18,5 W | 13° | PWM | 24V | ||
|
|
8411511 | Mini Corniche 60 wall mounted - LED 3000K 13° | 18,5 W | 13° | PWM | 24V | ||
|
|
8411561 | Mini Corniche 60 wall mounted - LED 4000K 13° | 18,5 W | 13° | PWM | 24V | ||
|
|
8411593 | Mini Corniche 60 wall mounted - LED 2700K 26° | 18,5 W | 26° | PWM | 24V | ||
|
|
8411513 | Mini Corniche 60 wall mounted - LED 3000K 26° | 18,5 W | 26° | PWM | 24V | ||
|
|
8411563 | Mini Corniche 60 wall mounted - LED 4000K 26° | 18,5 W | 26° | PWM | 24V | ||
|
|
8411598 | Mini Corniche 60 wall mounted - LED 2700K 40° | 18,5 W | 40° | PWM | 24V | ||
|
|
8411518 | Mini Corniche 60 wall mounted - LED 3000K 40° | 18,5 W | 40° | PWM | 24V | ||
|
|
8411568 | Mini Corniche 60 wall mounted - LED 4000K 40° | 18,5 W | 40° | PWM | 24V | ||
|
|
8411597 | Mini Corniche 60 wall mounted - LED 2700K Elliptical | 18,5 W | Elliptical | PWM | 24V | ||
|
|
8411517 | Mini Corniche 60 wall mounted - LED 3000K Elliptical | 18,5 W | Elliptical | PWM | 24V | ||
|
|
8411567 | Mini Corniche 60 wall mounted - LED 4000K Elliptical | 18,5 W | Elliptical | PWM | 24V | ||
|
8411596 | Mini Corniche 60 wall mounted - LED 2700K Diffuse | 11,0 W | Diffuse | PWM | 24V | ||
|
|
8411516 | Mini Corniche 60 wall mounted - LED 3000K Diffuse | 11,0 W | Diffuse | PWM | 24V | ||
|
|
8411566 | Mini Corniche 60 wall mounted - LED 4000K Diffuse | 11,0 W | Diffuse | PWM | 24V | ||
|
8391503 | Mini Corniche 60 wall mounted - 16 LED RGBW 26° | Max 23,0 W | Max 23,0 W | 26° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391508 | Mini Corniche 60 wall mounted - 16 LED RGBW 40° | Max 23,0 W | Max 23,0 W | 40° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391507 | Mini Corniche 60 wall mounted - 16 LED RGBW Elliptical | Max 23,0 W | Max 23,0 W | Elliptical | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
8411791 | Mini Corniche 90 wall mounted - LED 2700K 13° | 29,0 W | 13° | PWM | 24V | ||
|
|
8411711 | Mini Corniche 90 wall mounted - LED 3000K 13° | 29,0 W | 13° | PWM | 24V | ||
|
|
8411761 | Mini Corniche 90 wall mounted - LED 4000K 13° | 29,0 W | 13° | PWM | 24V | ||
|
|
8411793 | Mini Corniche 90 wall mounted - LED 2700K 26° | 29,0 W | 26° | PWM | 24V | ||
|
|
8411713 | Mini Corniche 90 wall mounted - LED 3000K 26° | 29,0 W | 26° | PWM | 24V | ||
|
|
8411763 | Mini Corniche 90 wall mounted - LED 4000K 26° | 29,0 W | 26° | PWM | 24V | ||
|
|
8411798 | Mini Corniche 90 wall mounted - LED 2700K 40° | 29,0 W | 40° | PWM | 24V | ||
|
|
8411718 | Mini Corniche 90 wall mounted - LED 3000K 40° | 29,0 W | 40° | PWM | 24V | ||
|
|
8411768 | Mini Corniche 90 wall mounted - LED 4000K 40° | 29,0 W | 40° | PWM | 24V | ||
|
|
8411797 | Mini Corniche 90 wall mounted - LED 2700K Elliptical | 29,0 W | Elliptical | PWM | 24V | ||
|
|
8411717 | Mini Corniche 90 wall mounted - LED 3000K Elliptical | 29,0 W | Elliptical | PWM | 24V | ||
|
|
8411767 | Mini Corniche 90 wall mounted - LED 4000K Elliptical | 29,0 W | Elliptical | PWM | 24V | ||
|
8411796 | Mini Corniche 90 wall mounted - LED 2700K Diffuse | 16,0 W | Diffuse | PWM | 24V | ||
|
|
8411716 | Mini Corniche 90 wall mounted - LED 3000K Diffuse | 16,0 W | Diffuse | PWM | 24V | ||
|
|
8411766 | Mini Corniche 90 wall mounted - LED 4000K Diffuse | 16,0 W | Diffuse | PWM | 24V | ||
|
8391703 | Mini Corniche 90 wall mounted - 24 LED RGBW 26° | Max 49,0 W | Max 49,0 W | 26° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8391708 | Mini Corniche 90 wall mounted - 24 LED RGBW 40° | Max 49,0 W | Max 49,0 W | 40° | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
|
8391707 | Mini Corniche 90 wall mounted - 24 LED RGBW Elliptical | Max 49,0 W | Max 49,0 W | Elliptical | PWM | Max 700mA (4 channels + 1 channel NTC) | |
|
8411691 | Mini Corniche 120 wall mounted - LED 2700K 13° | 40,0 W | 13° | PWM | 24V | ||
|
|
8411611 | Mini Corniche 120 wall mounted - LED 3000K 13° | 40,0 W | 13° | PWM | 24V | ||
|
|
8411661 | Mini Corniche 120 wall mounted - LED 4000K 13° | 40,0 W | 13° | PWM | 24V | ||
|
|
8411693 | Mini Corniche 120 wall mounted - LED 2700K 26° | 40,0 W | 26° | PWM | 24V | ||
|
|
8411613 | Mini Corniche 120 wall mounted - LED 3000K 26° | 40,0 W | 26° | PWM | 24V | ||
|
|
8411663 | Mini Corniche 120 wall mounted - LED 4000K 26° | 40,0 W | 26° | PWM | 24V | ||
|
|
8411698 | Mini Corniche 120 wall mounted - LED 2700K 40° | 40,0 W | 40° | PWM | 24V | ||
|
|
8411618 | Mini Corniche 120 wall mounted - LED 3000K 40° | 40,0 W | 40° | PWM | 24V | ||
|
|
8411668 | Mini Corniche 120 wall mounted - LED 4000K 40° | 40,0 W | 40° | PWM | 24V | ||
|
|
8411697 | Mini Corniche 120 wall mounted - LED 2700K Elliptical | 40,0 W | Elliptical | PWM | 24V | ||
|
|
8411617 | Mini Corniche 120 wall mounted - LED 3000K Elliptical | 40,0 W | Elliptical | PWM | 24V | ||
|
|
8411667 | Mini Corniche 120 wall mounted - LED 4000K Elliptical | 40,0 W | Elliptical | PWM | 24V | ||
|
8411696 | Mini Corniche 120 wall mounted - LED 2700K Diffuse | 21,0 W | Diffuse | PWM | 24V | ||
|
|
8411616 | Mini Corniche 120 wall mounted - LED 3000K Diffuse | 21,0 W | Diffuse | PWM | 24V | ||
|
|
8411666 | Mini Corniche 120 wall mounted - LED 4000K Diffuse | 21,0 W | Diffuse | PWM | 24V | ||
|
8391603 | Mini Corniche 120 wall mounted - 32 LED RGBW 26° | Max 46,0 W | Max 46,0 W | 26° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391608 | Mini Corniche 120 wall mounted - 32 LED RGBW 40° | Max 46,0 W | Max 46,0 W | 40° | PWM | Max 500mA (4 channels + 1 channel NTC) | |
|
|
8391607 | Mini Corniche 120 wall mounted - 32 LED RGBW Elliptical | Max 46,0 W | Max 46,0 W | Elliptical | PWM | Max 500mA (4 channels + 1 channel NTC) |
